Product Details:
|
Product Name: | Galvanized Korean Standard Link Chain | Material: | Carbon Steel |
---|---|---|---|
Surface: | Galvanized | Type: | Korean Standard Link Chain |
Application: | Suitable For All General Purposes | Packing: | Drums, Reels, Bags, Hanks |
High Light: | Q235B Round Steel Link Chain,Galvanized Round Steel Link Chain,Korean Standard Link Chain 3mm |

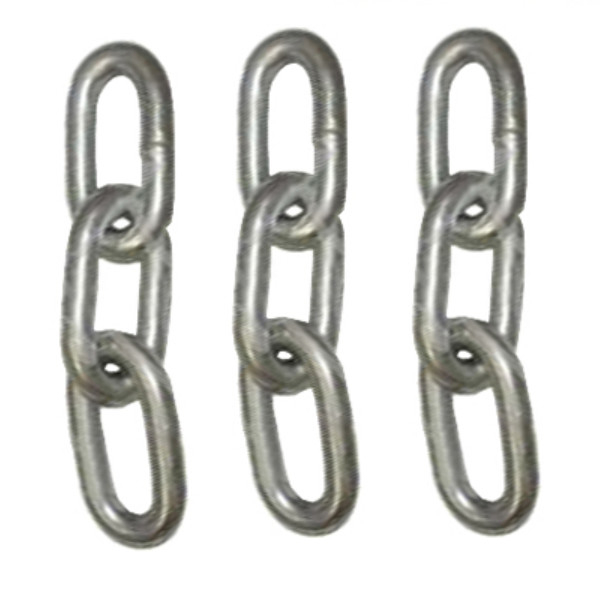

Korean standard link chain is a sort of link chain manufactured according to Korean standard. The chain is widely used in industry. There are two kinds of Korean standard link chain: short link and long link. We are able to supply Korean standard link chain made of various kinds of materials, such as Q235B, 20MnV, 25MnV... We can customize chain specifications in line with your requirements.
Hi-Sea Marine as a professional supplier of industrial chain, we offer a full line of chains for our customers. Lifting chains, lashing chains, mining chains, conveyor chains, transmission chains, drag chains, special chains and attachments are all available. If you are interested in our products, welcome to contact us.
Specifications of Korean Standard Link Chain
TYPE |
NOMINAL SIZE mm |
MATERIAL SIZE mm |
INSIDE LENGTH mm |
INSIDE WIDTH mm |
LENGTH PER PC mm |
WEIGHT PER PC kg |
SHORT LINK | 3 | 3.0 | 23.0 | 5.3 | 30 | 4.50 |
4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 | |
5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 | |
6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 | |
7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 | |
8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 | |
9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 | |
12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 | |
15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 | |
16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 | |
19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 | |
LONG LINK | 4 | 3.9 | 34.3 | 6.2 | 30 | 7.26 |
4.5 | 4.5 | 44.4 | 9.2 | 30 | 9.46 | |
5 | 4.8 | 45.0 | 11.0 | 30 | 11.31 | |
6 | 6.0 | 47.0 | 12.0 | 30 | 18.00 | |
7 | 6.8 | 50.0 | 11.4 | 15 | 11.19 | |
12 | 12.0 | 50.0 | 18.0 | 15 | 42.00 | |
15 | 14.8 | 64.0 | 23.0 | 15 | 61.44 | |
19 | 19.0 | 75.0 | 25.0 | 10 | 71.00 | |
NOTE | Please contact us for your specific specifications. |
