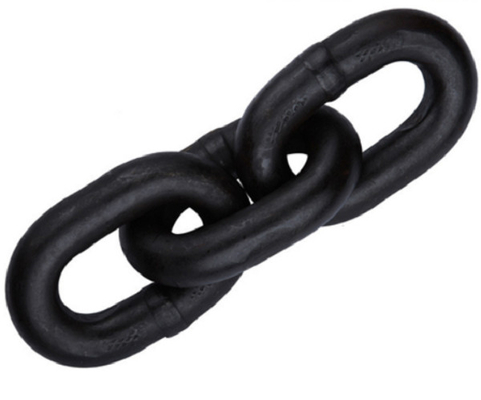

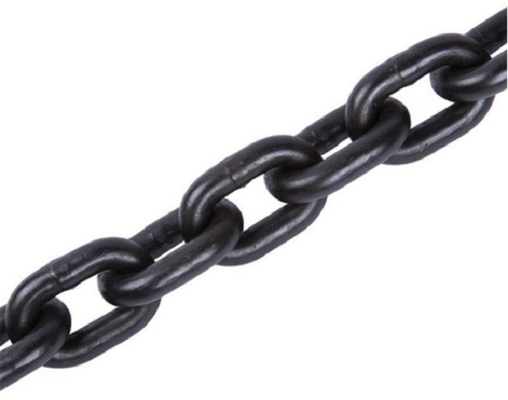

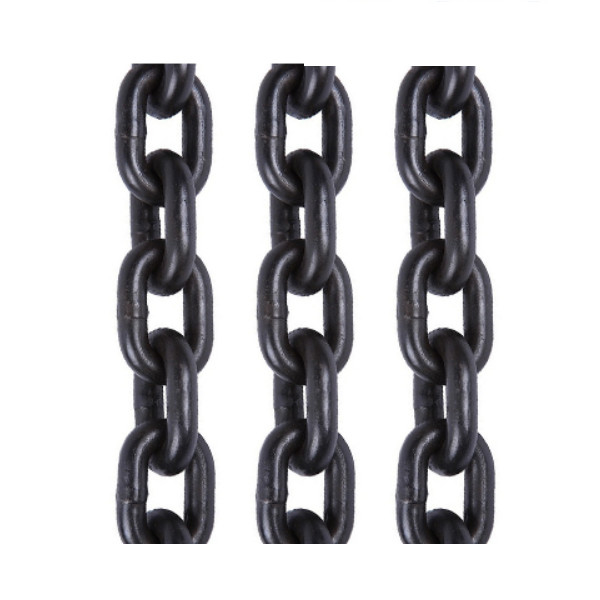

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45
European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45
European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45

Large Image :  European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: European Standard Short Link Chain
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45

Description
Product Name: European Standard Short Link Chain Material: Carbon Steel
Surface: Galvanized Size: M4 - M45
Packing: Cartong + Pallet
High Light:

European Standard 6mm short link chain

,

8mm short link chain M4

,

galvanised short link chain M45

European Standard Short Link Chain

The European standard short link chain is a kind of welded short link chain used for lifting purposes. The chain meets European Standard EN 818. The chain is heat treated and complying with the general conditions of acceptance. We offer the range of nominal sizes of chain is from 4 mm to 45 mm. Besides the standard specifications, non-standard specifications also are available. The chain provided are produced by Chinese top factories, quality-guaranteed.

Excepting for the chain complying with EN 818-2, ASTM grade 80 chain, 100 chain available, too. Please contact us for more information about welded link chains.



Features of European Standard Short Link Chain (EN 818)

• Available grades: grade 2, 3, 5, 8

• Finishes: hot galvanized, paint, powder coating or as per customer’s request

• To meet the specifications of EN 818

• Available in gunny bag, drums, pails

• Application: for use in chain slings and for general lifting purposes



Specifications of European Standard Short Link Chain (EN 818-2)

Dimensions in Millimeters

Nominal Size

dn

Weld Diameter

ds

max

 Pitch

Internal Width away from Weld

w1

min

External Width over the Weld

w2

max
Pn

P

max

P

min
4 4.4 12 12.4 11.6 5.2 14.8
5 5.5 15 15.5 14.6 6.5 18.5
6 6.6 18 18.5 17.5 7.8 22.2
7 7.7 21 21.6 20.4 9.1 25.9
8 8.8 24 24.7 23.3 10.4 29.6
10 11 30 30.9 29.1 13 37
13 14.3 39 40.2 37.8 16.9 48.1
16 17.6 48 49.4 46.6 20.8 59.2
18 19.8 54 55.6 52.4 23.4 66.6
19 20.9 57 58.7 55.3 24.7 70.3
20 22 60 61.8 58.2 26 74
22 24.2 66 68 64 28.6 81.4
23 25.3 69 71.1 66.9 29.9 85.1
25 27.5 75 77.3 72.8 32.5 92.5
26 28.6 78 80.3 75.7 33.8 96.2
28 30.8 84 86.5 81.5 36.4 104
32 35.2 96 98.9 93.1 41.6 118
36 39.6 108 111 105 46.8 133
40 44 120 124 116 52 148
45 49.5 135 139 131 58.5 167
Note

Pn -- nominal pitch

Pmax -- maximum pitch of chain

Pmin -- minimum pitch of chain

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 0European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 1

Packing & Delivery



European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 2

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 3
