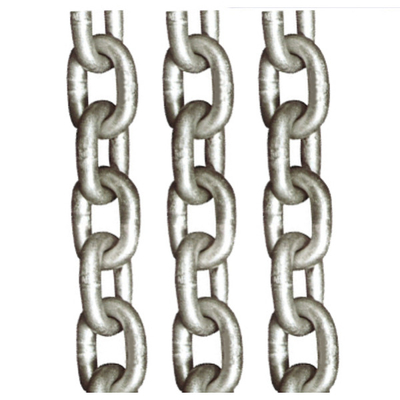

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain
M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain
M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain

Large Image :  M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Grade L Chain
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain

Description
Product Name: Galvanized Grade L Chain Material: Carbon Steel
Surface: Self-color,hot Dip Galvanized, Electro-galvanized, Black-painted. Size: M5 - M24
WLL: 0.25-5.61tons Packing: Cartong + Pallet
High Light:

M5 Round Steel Link Chain

,

M24 Round Steel Link Chain Galvanized

,

Grade L 10mm long link chain

Galvanized Grade L Chain

Grade L chain is a kind of Australian standard chain, can be made of carbon steel or stainless steel. This chain can not be used for lifting purposes.



Surface Treatment: self-color,hot dip galvanized, electro-galvanized, black-painted.



Specifications

Chain Size

mm

WLL

ton

S

mm

R

mm

F

mm

 Links Per M Length Per 100Kg
B.F. m H.D.G m
5.0 0.25 5.0 14.6 17.2 68.3 174.0 167.0
6.0 0.40 6.3 18.8 21.6 53.2 116.0 110.0
8.0 0.64 8.0 23.8 27.0 42.0 71.4 69.9
10.0 1.00 10.0 29.8 34.3 33.6 44.8 43.9
13.0 1.70 13.0 38.8 44.6 25.8 28.9 26.3
16.0 2.58 16.0 47.8 54.8 20.9 17.8 17.5
20.0 4.03 20.0 59.2 68.5 16.9 11.3 11.1
22.0 5.06 22.0 64.9 77.0 15.4 9.5 9.2
24.0 5.61 24.0 71.0 82.2 14.1 7.8 7.6



M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain 0

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain 1



Packing & Delivery

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain 2

M5 To M24 Round Steel Link Chain Galvanized Grade L 10mm Long Link Chain 3
