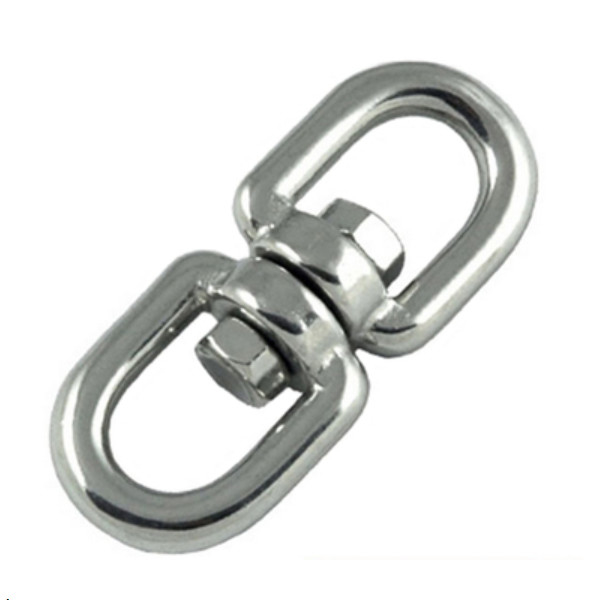

High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm

High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm
High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm
High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm

Large Image :  High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Swivel
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm

Description
Product Name: High Polished Stainless Steel Regular Swivel Material: Stainless Steel
Surface: High Polished Size: 4mm-25mm
Packing: Cartong + Pallet WLL: 112.5kg-3250kg
High Light:

High Polished crosby swivel

,

Stainless Steel crosby swivel 4mm

,

Regular Swivel 25mm

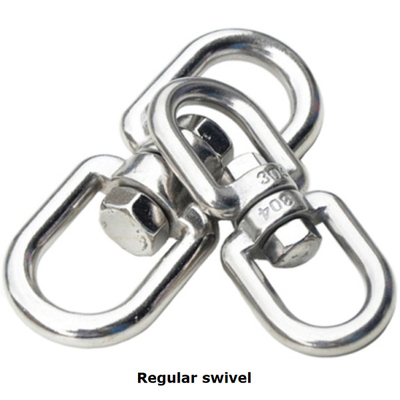

High Polished Stainless Steel Regular Swivel

The regular swivel is a kind of most common swivel, which is widely used in industry. It is made by high polished stainless steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

Product details:

1. Item: regular swivels

2. Type: US type

3. Material: stainless steel

4. Technology: drop forged

5. Surface: high polished

6. WLL: 112.5kg-3250kg

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 4mm-25mm

10.Special specifications and marks can be made according to customers requirement

Specification:

Size(A) B L W.L.L.
mm mm mm kg
4 4 50 112.5
5 5 59 162.5
6 6 66 300
8 8 94 475
9 9 102 750
10 10 113 875
13 13 152 1250
16 16 188 2125
19 19 229 2500
22 22 257 2875
25 25 291 3250



High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm 0

High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm 1High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm 2



Packing & Delivery



High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm 3

High Polished Stainless Steel Crosby Regular Swivel 4mm - 25mm 4
