Product Details:
|
| Product Name: | Galvanized Aluminum Alloy Pulley Block | Material: | Aluminum Alloy |
|---|---|---|---|
| Surface: | Zinc Plated, Galvanized | Size: | 5.7mm-15.5mm |
| WLL: | 5T-80T | Packaging: | Gunny Bag Or Carton Then On Pallet |
| High Light: | double pulley block 5.7mm,Aluminum Alloy double pulley block 15.5mm,galvanized pulley block 80T |
||
Aluminum alloy pulley block is made by high quality aluminum alloy steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.
Product Details:

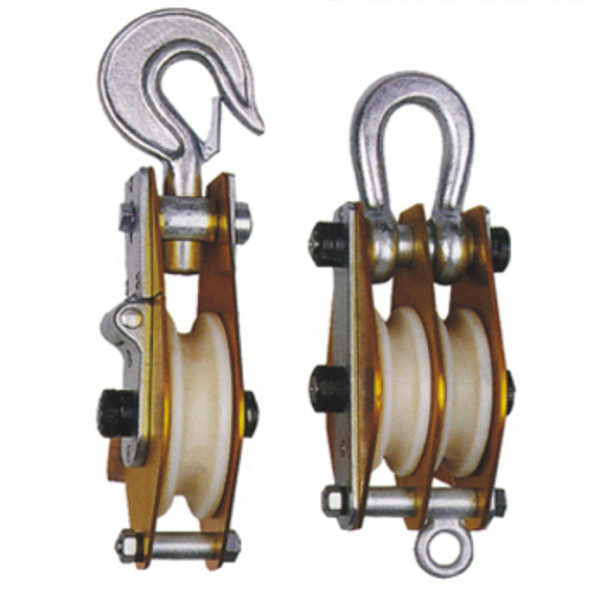

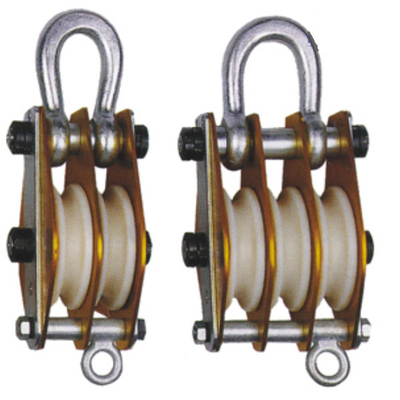

1. Item: Aluminum alloy pulley block
2. Type: Snatch block
3. Material: Aluminum alloy
4. Technology: Drop forged
5. Surface: Zinc plated, Galvanized
6. WLL: 5T-80T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 5.7mm-15.5mm
10. Special specifications and marks can be made according to customers requirement
Specification:
| Sheave No. | Rated Load(KN) | Rope Dia.(mm) | Weight(kg) |
| 1 | 5 | 5.7 | 1.2 |
| 1 | 10 | 7.7 | 1.5 |
| 2 | 10 | 5.7 | 1.75 |
| 3 | 10 | 5.7 | 2 |
| 2 | 15 | 7.7 | 2 |
| 3 | 15 | 12.5 | 2.75 |
| 1 | 20 | 11 | 2 |
| 2 | 20 | 7.7 | 2.5 |
| 3 | 20 | 7.7 | 2.75 |
| 1 | 30 | 12.5 | 3.5 |
| 2 | 30 | 11 | 4 |
| 3 | 30 | 7.7 | 4.2 |
| 1 | 50 | 15.5 | 4 |
| 2 | 50 | 12.5 | 4.5 |
| 3 | 50 | 11 | 4.75 |
| 1 | 80 | 18.5 | 6 |
| 2 | 80 | 15.5 | 6.5 |
| 3 | 80 | 15.5 | 6.75 |
