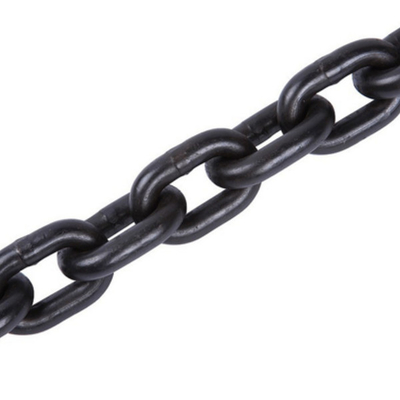

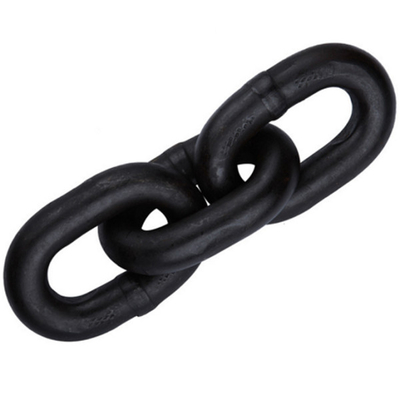

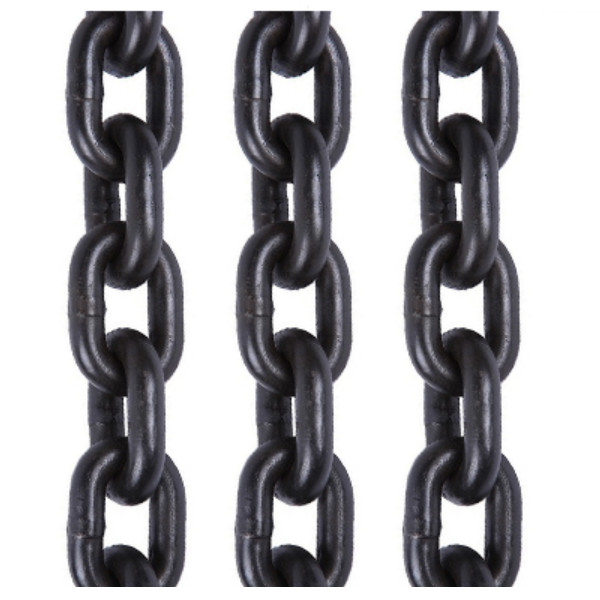

Galvanized Short Link Anchor Chain European Standard EN818

Galvanized Short Link Anchor Chain European Standard EN818
Galvanized Short Link Anchor Chain European Standard EN818
Galvanized Short Link Anchor Chain European Standard EN818 Galvanized Short Link Anchor Chain European Standard EN818 Galvanized Short Link Anchor Chain European Standard EN818 Galvanized Short Link Anchor Chain European Standard EN818

Large Image :  Galvanized Short Link Anchor Chain European Standard EN818

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: European Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Galvanized Short Link Anchor Chain European Standard EN818

Description
Product Name: Galvanized European Standard Short Link Chain Material: Carbon Steel
Surface: Hot Galvanized, Paint, Powder Coating Or As Per Customer’s Request Available Grades: Grade 2, 3, 5, 8
Application: For Use In Chain Slings And For General Lifting Purposes Packing: Gunny Bag, Drums, Pails
High Light:

Galvanized Short Link Chain

,

Short Link Chain ASTM

,

short link anchor chain EN818

Galvanized European Standard Short Link Chain

The European standard short link chain is a kind of welded short link chain used for lifting purposes. The chain meets European Standard EN 818. The chain is heat treated and complying with the general conditions of acceptance. We offer the range of nominal sizes of chain is from 4 mm to 45 mm. Besides the standard specifications, non-standard specifications also are available. The chain provided are produced by Chinese top factories, quality-guaranteed.

Excepting for the chain complying with EN 818-2, ASTM grade 80 chain, 100 chain available, too. Please contact us for more information about welded link chains.



Features of European Standard Short Link Chain (EN 818)

• Available grades: grade 2, 3, 5, 8

• Finishes: hot galvanized, paint, powder coating or as per customer’s request

• To meet the specifications of EN 818

• Available in gunny bag, drums, pails

• Application: for use in chain slings and for general lifting purposes



Specifications of European Standard Short Link Chain (EN 818-2)

Dimensions in Millimeters

Nominal Size

dn

Weld Diameter

ds

max

 Pitch

Internal Width away from Weld

w1

min

External Width over the Weld

w2

max
Pn

P

max

P

min
4 4.4 12 12.4 11.6 5.2 14.8
5 5.5 15 15.5 14.6 6.5 18.5
6 6.6 18 18.5 17.5 7.8 22.2
7 7.7 21 21.6 20.4 9.1 25.9
8 8.8 24 24.7 23.3 10.4 29.6
10 11 30 30.9 29.1 13 37
13 14.3 39 40.2 37.8 16.9 48.1
16 17.6 48 49.4 46.6 20.8 59.2
18 19.8 54 55.6 52.4 23.4 66.6
19 20.9 57 58.7 55.3 24.7 70.3
20 22 60 61.8 58.2 26 74
22 24.2 66 68 64 28.6 81.4
23 25.3 69 71.1 66.9 29.9 85.1
25 27.5 75 77.3 72.8 32.5 92.5
26 28.6 78 80.3 75.7 33.8 96.2
28 30.8 84 86.5 81.5 36.4 104
32 35.2 96 98.9 93.1 41.6 118
36 39.6 108 111 105 46.8 133
40 44 120 124 116 52 148
45 49.5 135 139 131 58.5 167
Note

Pn -- nominal pitch

Pmax -- maximum pitch of chain

Pmin -- minimum pitch of chain



Galvanized Short Link Anchor Chain European Standard EN818 0Galvanized Short Link Anchor Chain European Standard EN818 1



Packing & Delivery

Galvanized Short Link Anchor Chain European Standard EN818 2

Galvanized Short Link Anchor Chain European Standard EN818 3
