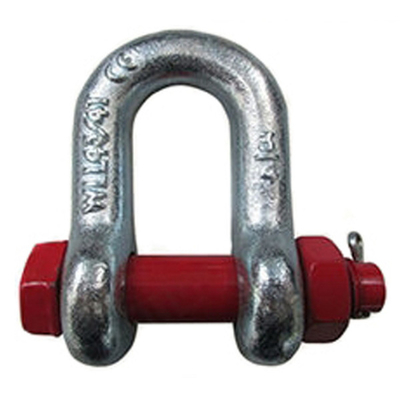

1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle

1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle
1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle
1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle

Large Image :  1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Chain Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle

Description
Product Name: Galvanized Bolt Pin Chain Shackle Material: Alloy Steel, Stainless Steel, Carbon Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Painted Size: From 1/4 Inch To 3 Inch
Packing: Cartong + Pallet WLL: 1/2 - 55 Tons
High Light:

1/4in Screw Pin Anchor Shackle

,

3in Screw Pin Anchor Shackle

,

crosby chain shackle ISO

Galvanized Bolt Pin Chain Shackle

Bolt pin chain shackles are widely used in rigging systems. Our company has been producing this product for many years and most of material and sizes are available. Because of our cooperation with other excellent factories, the price is also very competitive. In addition, our professional sales team will offer you the best service. We are looking forward to be your business partner. Welcom to get in touch with us.

Details:

1. Model: Bolt pin chain shackle
2. Material: Alloy steel, stainless steel, carbon steel
3. Usage: Marine hardware, riggings, etc.
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 3 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Nominal size (in) Working load limit (tons) Dimensions (in) Weight each (lbs)
A B C D E F G K L M N G-210 G-215
S-210 S-215
1/4 1/2 0.47 0.31 0.25 0.25 0.97 0.61 0.88 1.59 0.19 1.38 1.34 0.11 0.1
5/16 3/4 0.53 0.38 0.31 0.31 1.16 0.75 1.03 1.91 0.22 1.66 1.59 0.17 0.18
3/8 1 0.66 0.44 0.38 0.38 1.41 0.91 1.25 2.3 0.25 2.03 1.86 0.24 0.25
7/16 11/2 0.75 0.5 0.44 0.44 1.63 1.06 1.44 2.66 0.31 2.38 2.13 0.4 0.38
1/2 2 0.81 0.63 0.5 0.5 1.81 1.19 1.63 3.03 0.38 2.69 2.38 0.59 0.5
5/8 31/4 1.06 0.75 0.62 0.63 2.31 1.5 2 3.75 0.44 3.34 2.91 1.21 1.21
3/4 43/4 1.25 0.88 0.81 0.75 2.75 1.81 2.38 4.53 0.5 3.97 3.44 2.25 2
7/8 61/2 1.44 1 0.97 0.88 3.19 2.09 2.81 5.33 0.5 4.5 3.81 3.16 3.28
1 81/2 1.69 1.13 1 1 3.69 2.38 3.19 5.94 0.56 5.07 4.53 4.75 4.75
11/8 91/2 1.81 1.25 1.25 1.13 4.06 2.69 3.58 6.78 0.63 5.59 5.13 6.75 6.3
11/4 12 2.03 1.38 1.38 1.25 4.53 3 3.94 7.5 0.69 6.16 5.5 9.06 9
13/8 131/2 2.25 1.5 1.5 1.38 5 3.31 4.38 8.28 0.75 6.84 6.13 11.63 12
11/2 17 2.38 1.62 1.62 1.5 5.38 3.62 4.81 9.06 0.81 7.35 6.5 15.95 16.15
13/4 25 2.88 2.12 2.12 1.75 6.38 4.19 5.75 10.97 1 9.08 7.75 26.75 29.96
2 35 3.25 2 2 2 7.25 4.81 6.75 12.28 1.22 10.34 8.75 42.31 43.25
21/2 55 4.13 2.62 2.62 2.62 9.38 5.69 8 14.84 1.38 13 - 71.75 -



1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 01/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 1



Packing & Delivery



1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 2

1/4 To 3 Inch Bolt Screw Pin Anchor Shackle Crosby Chain Shackle 3
