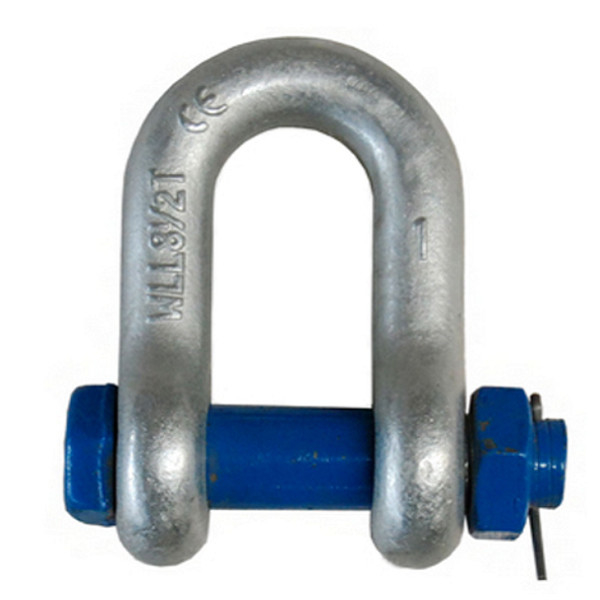

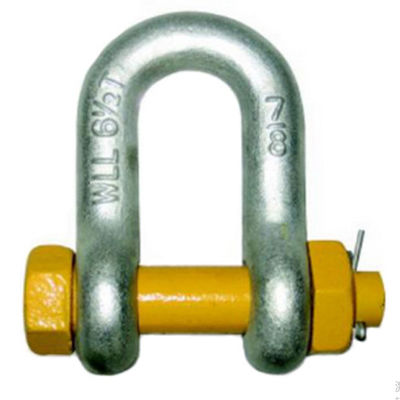

Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin

Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin
Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin
Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin

Large Image :  Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G2150
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin

Description
Product Name: Galvanized G2150 Chain Shackle With Safety Bolt Pin Material: Carbon Steel, Alloy Steel, Stainless Steel
Surface: Lectric Galvanized, Hot Dipped Galvanized Size: From 3/16 Inch To 4 Inch
Packing: Cartong + Pallet WLL: 1/3- 150 Tons
High Light:

G2150 screw pin chain shackle

,

Galvanized screw pin chain shackle 4in

,

G2150 boat anchor shackle

Galvanized G2150 Chain Shackle with Safety Bolt Pin

G2150 bolt type shackles with safety pin chain are practical in many rigging systems. We have our own factories and also co-opeate with other excellent factories, so the price is very competitive. Welcome to get in touch with us.

Details:

1. Model: G2150 Chain Shackle with Safety Bolt Pin
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: Different size available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Nominal size Weight each(kg) Working load limit Dimensions(mm)
in G2150 tons A B C D E F G H L M P
3/16 0.03 1/3 9.65 6.35 22.4 4.85 15.2 14.2 - 37.3 24.9 - 32.77
1/4 0.05 1/2 11.90 7.85 28.7 6.35 19.8 15.5 19.05 46.7 32.5 15.49 39.62
5/16 0.10 3/4 13.50 9.65 31.0 7.85 21.3 19.1 25.40 53.0 37.3 19.05 46.23
3/8 0.15 1 16.80 11.20 36.6 9.65 26.2 23.1 30.99 63.0 45.2 23.11 55.12
7/16 0.22 1-1/2 19.10 12.70 42.9 11.20 29.5 26.9 36.09 74.0 51.5 41.15 63.75
1/2 0.36 2 20.60 16.00 47.8 12.70 33.3 30.2 41.04 83.5 58.5 45.97 71.12
5/8 0.76 3-1/4 26.90 19.10 60.5 16.00 42.9 38.1 50.80 106.0 74.5 58.67 89.66
3/4 1.23 4-3/4 31.80 22.40 71.5 19.10 51.0 46.0 60.45 126.0 89.0 69.85 103.38
7/8 1.79 6-1/2 36.60 25.40 84.0 22.40 58.0 53.0 71.37 148.0 102.0 81.03 119.63
1 2.57 8-1/2 42.90 28.70 95.5 25.40 68.5 60.5 81.03 167.0 119.0 93.73 134.87
1-1/8 3.75 9-1/2 46.00 31.80 108.0 28.70 74.0 68.5 90.93 190.0 131.0 103.12 149.86
1-1/4 5.31 12 51.50 35.10 119.0 31.80 82.5 76.0 100.08 210.0 146.0 115.06 165.35
1-3/8 7.18 13-1/2 57.00 38.10 133.0 35.10 92.0 84.0 111.25 233.0 162.0 127.00 183.13
1-1/2 9.43 17 60.50 41.40 146.0 38.10 98.5 92.0 122.17 254.0 175.0 136.05 196.34
1-3/4 15.40 25 73.00 51.00 178.0 44.50 127.0 106.0 146.05 313.0 225.0 162.05 229.87
2 23.70 35 82.50 57.00 197.0 51.00 146.0 122.0 171.45 348.0 253.0 184.15 264.41
2-1/2 44.60 55 105.00 70.00 267.0 66.50 184.0 145.0 203.20 453.0 327.0 238.25 344.42
3 70.00 85 127.00 82.50 330.0 76.00 200.0 165.0 215.90 546.0 365.0 279.40 419.10
3-1/2 120.00 120 133.00 95.50 372.0 92.00 229.0 203.0 - 626.0 419.0 - 482.60
4 153.00 150 140.00 108.00 368.0 104.00 254.0 229.0 - 653.0 468.0 - 501.65



Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin 0Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin 1Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin 2



Packing & Delivery



Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin 3

Galvanized G2150 Boat Anchor Screw Pin Chain Shackle With Safety Bolt Pin 4
