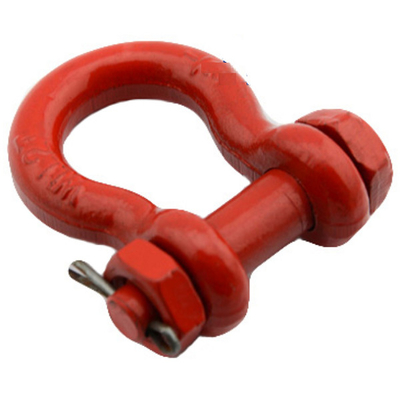

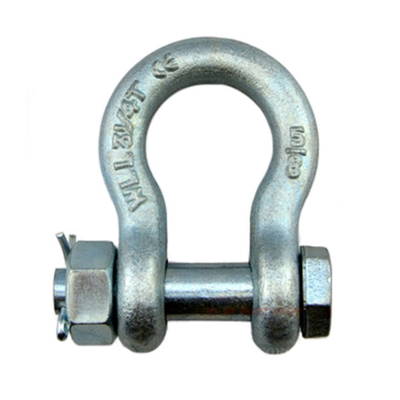

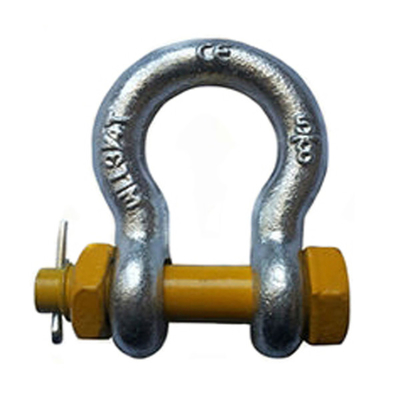

Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type

Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type
Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type
Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type

Large Image :  Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G2130
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type

Description
Product Name: Galvanized Bolt Type Safety Anchor Shackle G2130 Material: Carbon Steel, Alloy Steel, Stainless Steel
Surface: Lectric Galvanized, Hot Dipped Galvanized Size: From 3/16 Inch To 2-1/2 Inch
Packing: Cartong + Pallet WLL: 1/3- 55 Tons
High Light:

SGS Screw Pin Anchor Shackle

,

Screw Pin Anchor Shackle G2130

,

Galvanized Safety Anchor Shackle

Galvanized Bolt Type Safety Anchor Shackle G2130

Bolt type safety anchor shackles G2130 are neccessary for marine equipment. Our company has stimulated lots of experiences in producing this product. And we also have a professional sales team and they can provide you with the best service. We are looking forward to cooperating with you.

Details:

1. Model: Bolt Type Safety Anchor Shackle G2130
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 3/16 inch to 2-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Nominal size Working load limit Dimensions(in) Weight each(lbs)
in tons A B C D E F H L N G2130
3/16 1/3 0.38 0.25 0.88 0.19 0.6 0.56 1.47 0.98 0.19 0.06
1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.84 1.28 0.25 0.11
5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 2.09 1.47 0.31 0.22
3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 2.49 1.78 0.38 0.33
7/16 1-1/2 0.75 0.5 1.69 0.44 1.16 1.06 2.91 2.03 0.44 0.49
1/2 2 0.81 0.64 1.88 0.5 1.31 1.19 3.28 2.31 0.5 0.79
5/8 3-1/4 1.06 0.77 2.38 0.63 1.69 1.5 4.19 2.94 0.69 1.68
3/4 4-3/4 1.25 0.89 2.81 0.75 2 1.81 4.97 3.5 0.81 2.72
7/8 6-1/2 1.44 1.02 3.31 0.88 2.28 2.09 5.83 4.03 0.97 3.95
1 8-1/2 1.69 1.15 3.75 1 2.69 2.38 6.56 4.69 1.06 5.66
1-1/8 9-1/2 1.81 1.25 4.25 1.13 2.91 2.69 7.47 5.16 1.25 8.27
1-1/4 12 2.03 1.4 4.69 1.29 3.25 3 8.25 5.75 1.38 11.71
1-3/8 13-1/2 2.25 1.53 5.25 1.42 3.63 3.31 9.16 6.38 1.5 15.83
1-1/2 17 2.38 1.66 5.75 1.53 3.88 3.63 10 6.88 1.62 19
1-3/4 25 2.88 2.04 7 1.84 5 4.19 12.34 8.8 2.25 33.91
2 35 3.25 2.3 7.75 2.08 5.75 4.81 13.68 10.15 2.4 52.25
2-1/2 55 4.13 2.8 10.5 2.71 7.25 5.69 17.9 12.75 3.13 98.25



Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type 0Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type 1Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type 2



Packing & Delivery



Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type 3

Galvanized Safety Screw Pin Anchor Shackle G2130 Bolt Type 4
