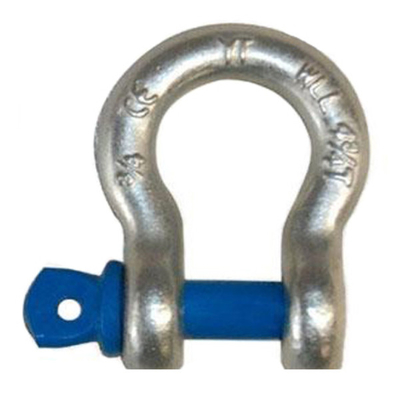

3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor

3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor
3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor
3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor 3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor

Large Image :  3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Screw Pin Anchor Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor

Description
Product Name: Galvanized Drop Forged Screw Pin Anchor Shackle Material: Alloy Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Painted Size: From 3/16 Inch To 2 1/2 Inch
Packing: Cartong + Pallet WLL: 1/3 - 55 Tons
High Light:

3/16 inch screw pin type shackle

,

screw pin type shackle ISO

,

shackle screw pin anchor 3/16 inch

Galvanized Drop Forged Bolt Type Bow Shackle

Galvanized drop forged anchor shackle is a kind of common used marine rigging. The shackle should be scrapped when there is obvious permanent deformation or the shaft pin can not rotate freely. It can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Details:

1. Model: Galvanized drop forged anchor shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 3/16 inch to 2 1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size WLL Weight each Dimensions(in)
in tons lbs A B C D E F G H L M P
3/16 1/3 0.06 0.38 0.25 0.88 0.19 0.60 0.56 0.98 1.47 0.16 1.14 0.19
1/4 1/2 0.10 0.47 0.31 1.13 0.25 0.78 0.61 1.28 1.84 0.19 1.43 0.25
5/16 3/4 0.19 0.53 0.38 1.22 0.31 0.84 0.75 1.47 2.09 0.22 1.71 0.31
3/8 1 0.31 0.66 0.44 1.44 0.38 1.03 0.91 1.78 2.49 0.25 2.02 0.38
7/16 1 1/2 0.38 0.75 0.50 1.69 0.44 1.16 1.06 2.03 2.91 0.31 2.37 0.44
1/2 2 0.72 0.81 0.63 1.88 0.50 1.31 1.19 2.31 3.28 0.38 2.69 0.50
5/8 3 1/4 1.37 1.06 0.75 2.38 0.63 1.69 1.50 2.94 4.19 0.44 3.34 0.69
3/4 4 3/4 2.35 1.25 0.88 2.81 0.75 2.00 1.81 3.50 4.97 0.50 3.97 0.81
7/8 6 1/2 3.62 1.44 1.00 3.31 0.88 2.28 2.09 4.03 5.83 0.50 4.50 0.97
1 8 1/2 5.03 1.69 1.13 3.75 1.00 2.69 2.38 4.69 6.56 0.56 5.13 1.06
1 1/8 9 1/2 7.41 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 0.63 5.71 1.25
1 1/4 12 9.50 2.03 1.38 4.69 1.29 3.25 3.00 5.75 8.25 0.69 6.25 1.38
1 3/8 13 1/2 13.53 2.25 1.50 5.25 1.42 3.63 3.31 6.38 9.16 0.75 6.83 1.50
1 1/2 17 17.20 2.38 1.63 5.75 1.54 3.88 3.63 6.88 10.00 0.81 7.33 1.62
1 3/4 25 27.78 2.88 2.00 7.00 1.84 5.00 4.19 8.86 12.34 1.00 9.06 2.25
2 35 45.00 3.25 2.25 7.75 2.08 5.75 4.81 9.97 13.68 1.22 10.35 2.40
2 1/2 55 85.75 4.13 2.75 10.50 2.71 7.25 5.69 12.87 17.84 1.38 13.00

3.13



3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor 0

3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor 1

Packing & Delivery



3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor 2

3/16 Inch Galvanized Drop Forged Screw Pin Type Shackle Screw Pin Anchor 3
