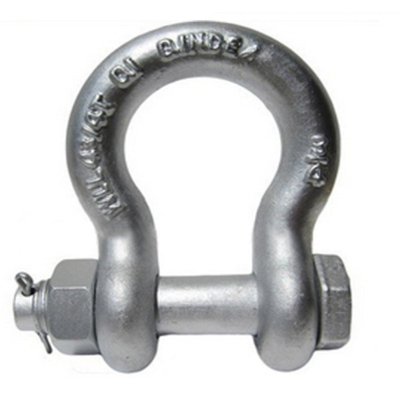

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle
Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle
Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Large Image :  Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Bow Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle

Description
Product Name: Galvanized Drop Forged Bolt Type Bow Shackle Material: Alloy Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Painted Size: 3/16" - 2-1/2 ''
Packing: Cartong + Pallet WLL: 1/3 - 55 Tons
High Light:

Drop Forged Screw Pin Anchor Shackle

,

55T Screw Pin Anchor Shackle

,

Galvanized Bolt Type Bow Shackle

Galvanized Drop Forged Bolt Type Bow Shackle

Galvanized drop forged bolt type shackle also referred to as an anchor shackle. With a larger 'O' shape to the loop, it can take loads from many directions without developing as much side load. However, the larger shape to the loop does reduce its overall strength.

Details:

1. Model: Galvanized drop forged bolt type shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 3/16 inch to 2 2/1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:



Nominal size Working load limit Dimensions(in) Weight each(lbs)
in tons A B C D E F H L N G2130
3/16 1/3 0.38 0.25 0.88 0.19 0.6 0.56 1.47 0.98 0.19 0.06
1/4 1/2 0.47 0.31 1.13 0.25 0.78 0.61 1.84 1.28 0.25 0.11
5/16 3/4 0.53 0.38 1.22 0.31 0.84 0.75 2.09 1.47 0.31 0.22
3/8 1 0.66 0.44 1.44 0.38 1.03 0.91 2.49 1.78 0.38 0.33
7/16 1-1/2 0.75 0.5 1.69 0.44 1.16 1.06 2.91 2.03 0.44 0.49
1/2 2 0.81 0.64 1.88 0.5 1.31 1.19 3.28 2.31 0.5 0.79
5/8 3-1/4 1.06 0.77 2.38 0.63 1.69 1.5 4.19 2.94 0.69 1.68
3/4 4-3/4 1.25 0.89 2.81 0.75 2 1.81 4.97 3.5 0.81 2.72
7/8 6-1/2 1.44 1.02 3.31 0.88 2.28 2.09 5.83 4.03 0.97 3.95
1 8-1/2 1.69 1.15 3.75 1 2.69 2.38 6.56 4.69 1.06 5.66
1-1/8 9-1/2 1.81 1.25 4.25 1.13 2.91 2.69 7.47 5.16 1.25 8.27
1-1/4 12 2.03 1.4 4.69 1.29 3.25 3 8.25 5.75 1.38 11.71
1-3/8 13-1/2 2.25 1.53 5.25 1.42 3.63 3.31 9.16 6.38 1.5 15.83
1-1/2 17 2.38 1.66 5.75 1.53 3.88 3.63 10 6.88 1.62 19
1-3/4 25 2.88 2.04 7 1.84 5 4.19 12.34 8.8 2.25 33.91
2 35 3.25 2.3 7.75 2.08 5.75 4.81 13.68 10.15 2.4 52.25
2-1/2 55 4.13 2.8 10.5 2.71 7.25 5.69 17.9 12.75 3.13 98.25



Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle 0Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle 1



Packing & Delivery



Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle 2

Drop Forged 55T Screw Pin Anchor Shackle Galvanized Bolt Type Bow Shackle 3
