Product Details:
|
| Product Name: | Galvanized Drop Forged Chain Shackle | Material: | Alloy Steel |
|---|---|---|---|
| Surface: | Electric Galvanized, Hot Dipped Galvanized, Painted | Size: | 1/4" - 2 '' |
| Packing: | Cartong + Pallet | WLL: | 1/2 - 35 Tons |
| High Light: | Galvanized forged anchor shackle,forged anchor 1/4IN,2IN crosby alloy screw pin shackles |
||

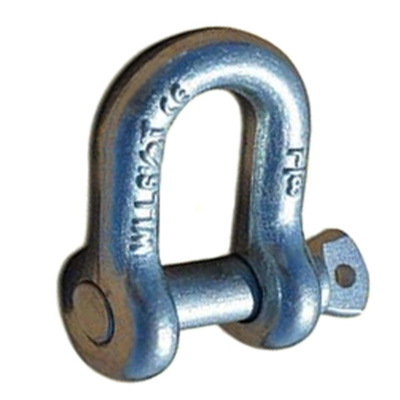

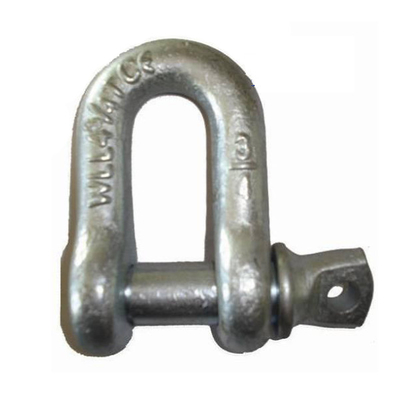

Galvanized drop forged chain shackle are very common and most other shackle types are a variation of the D-shackle. The small loop can take high loads primarily in line. Side and racking loads may twist or bend a D-shackle.
Details:
1. Model: Galvanized drop forged chain shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 2inch
6. Packing:Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Nominal size (in) | W.L.L (tons) | Dimensions (in) | Weight each (lbs) | |||||||||||
| A | B | C | D | E | F | G | K | L | M | N | G-210 | G-215 | ||
| S-210 | S-215 | |||||||||||||
| 1/4 | 1/2 | 0.47 | 0.31 | 0.25 | 0.25 | 0.97 | 0.61 | 0.88 | 1.59 | 0.19 | 1.38 | 1.34 | 0.11 | 0.1 |
| 5/16 | 3/4 | 0.53 | 0.38 | 0.31 | 0.31 | 1.16 | 0.75 | 1.03 | 1.91 | 0.22 | 1.66 | 1.59 | 0.17 | 0.18 |
| 3/8 | 1 | 0.66 | 0.44 | 0.38 | 0.38 | 1.41 | 0.91 | 1.25 | 2.3 | 0.25 | 2.03 | 1.86 | 0.24 | 0.25 |
| 7/16 | 11/2 | 0.75 | 0.5 | 0.44 | 0.44 | 1.63 | 1.06 | 1.44 | 2.66 | 0.31 | 2.38 | 2.13 | 0.4 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 0.5 | 0.5 | 1.81 | 1.19 | 1.63 | 3.03 | 0.38 | 2.69 | 2.38 | 0.59 | 0.5 |
| 5/8 | 31/4 | 1.06 | 0.75 | 0.62 | 0.63 | 2.31 | 1.5 | 2 | 3.75 | 0.44 | 3.34 | 2.91 | 1.21 | 1.21 |
| 3/4 | 43/4 | 1.25 | 0.88 | 0.81 | 0.75 | 2.75 | 1.81 | 2.38 | 4.53 | 0.5 | 3.97 | 3.44 | 2.25 | 2 |
| 7/8 | 61/2 | 1.44 | 1 | 0.97 | 0.88 | 3.19 | 2.09 | 2.81 | 5.33 | 0.5 | 4.5 | 3.81 | 3.16 | 3.28 |
| 1 | 81/2 | 1.69 | 1.13 | 1 | 1 | 3.69 | 2.38 | 3.19 | 5.94 | 0.56 | 5.07 | 4.53 | 4.75 | 4.75 |
| 1 1/8 | 91/2 | 1.81 | 1.25 | 1.25 | 1.13 | 4.06 | 2.69 | 3.58 | 6.78 | 0.63 | 5.59 | 5.13 | 6.75 | 6.3 |
| 1 1/4 | 12 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3 | 3.94 | 7.5 | 0.69 | 6.16 | 5.5 | 9.06 | 9 |
| 1 3/8 | 131/2 | 2.25 | 1.5 | 1.5 | 1.38 | 5 | 3.31 | 4.38 | 8.28 | 0.75 | 6.84 | 6.13 | 11.63 | 12 |
| 1 1/2 | 17 | 2.38 | 1.62 | 1.62 | 1.5 | 5.38 | 3.62 | 4.81 | 9.06 | 0.81 | 7.35 | 6.5 | 15.95 | 16.15 |
| 1 3/4 | 25 | 2.88 | 2.12 | 2.12 | 1.75 | 6.38 | 4.19 | 5.75 | 10.97 | 1 | 9.08 | 7.75 | 26.75 | 29.96 |
| 2 | 35 | 3.25 | 2 | 2 | 2 | 7.25 | 4.81 | 6.75 | 12.28 | 1.22 | 10.34 | 8.75 | 42.31 | 43.25 |
