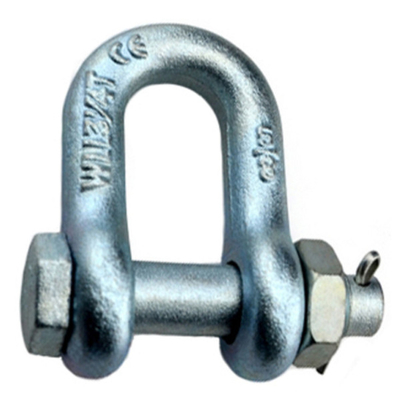

Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T
Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T
Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

Large Image :  Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Chain Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T

Description
Product Name: Drop Forged Bolt Type Chain Shackle Material: Alloy Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Painted Size: 1/4" - 3 ''
Packing: Cartong + Pallet WLL: 1/2 - 85 Tons
High Light:

85tons Screw Pin Anchor Shackle

,

galvanized Screw Pin Anchor Shackle

,

Bolt Type Chain Shackle 85tons

Electric galvanized Drop Forged Bolt Type Chain Shackle

Galvanized drop forged bolt type chain shackle also known as a D-shackle. D-shackles are narrow shackles shaped like a loop of chain, usually with a pin or threaded pin closure. The breaking load is 6 times of working load limited. Because of its galvanized surface, it can serve in many circumstances.

Details:

1. Model: Galvanized drop forged bolt type chain shackle
2. Material: Alloy steel
3. Usage: Marine hardware, electric power, machinery, metallurgy, building
4. Surface Treatment: Electric galvanized, hot dipped galvanized, painted
5. Size: From 1/4 inch to 3 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:



Nominal size Weight each Working load limit Dimensions(mm)
in kg tons A B C D E F G H L M P
1/4 0.05 1/2 11.90 7.85 28.7 6.35 19.8 15.5 19.05 46.7 32.5 15.49 39.62
5/16 0.10 3/4 13.50 9.65 31.0 7.85 21.3 19.1 25.40 53.0 37.3 19.05 46.23
3/8 0.15 1 16.80 11.20 36.6 9.65 26.2 23.1 30.99 63.0 45.2 23.11 55.12
7/16 0.22 1-1/2 19.10 12.70 42.9 11.20 29.5 26.9 36.09 74.0 51.5 41.15 63.75
1/2 0.36 2 20.60 16.00 47.8 12.70 33.3 30.2 41.04 83.5 58.5 45.97 71.12
5/8 0.76 3-1/4 26.90 19.10 60.5 16.00 42.9 38.1 50.80 106.0 74.5 58.67 89.66
3/4 1.23 4-3/4 31.80 22.40 71.5 19.10 51.0 46.0 60.45 126.0 89.0 69.85 103.38
7/8 1.79 6-1/2 36.60 25.40 84.0 22.40 58.0 53.0 71.37 148.0 102.0 81.03 119.63
1 2.57 8-1/2 42.90 28.70 95.5 25.40 68.5 60.5 81.03 167.0 119.0 93.73 134.87
1-1/8 3.75 9-1/2 46.00 31.80 108.0 28.70 74.0 68.5 90.93 190.0 131.0 103.12 149.86
1-1/4 5.31 12 51.50 35.10 119.0 31.80 82.5 76.0 100.08 210.0 146.0 115.06 165.35
1-3/8 7.18 13-1/2 57.00 38.10 133.0 35.10 92.0 84.0 111.25 233.0 162.0 127.00 183.13
1-1/2 9.43 17 60.50 41.40 146.0 38.10 98.5 92.0 122.17 254.0 175.0 136.05 196.34
1-3/4 15.40 25 73.00 51.00 178.0 44.50 127.0 106.0 146.05 313.0 225.0 162.05 229.87
2 23.70 35 82.50 57.00 197.0 51.00 146.0 122.0 171.45 348.0 253.0 184.15 264.41
2-1/2 44.60 55 105.00 70.00 267.0 66.50 184.0 145.0 203.20 453.0 327.0 238.25 344.42
3 70.00 85 127.00 82.50 330.0 76.00 200.0 165.0 215.90 546.0 365.0 279.40

419.10





Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T 0

Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T 1



Packing & Delivery



Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T 2

Electric galvanized Screw Pin Anchor Shackle Drop Forged Bolt Type Chain Shackle 85T 3
