Product Details:
|
| Product Name: | DIN5685C Long Link Chains | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized | Size: | M2 - M13 |
| Weight: | 0.06 - 2.95 Kg/m | Packing: | Cartong + Pallet |
| High Light: | ISO Round Steel Link Chain,Round Steel Link Chain for lifting,long link chains DIN5685C |
||

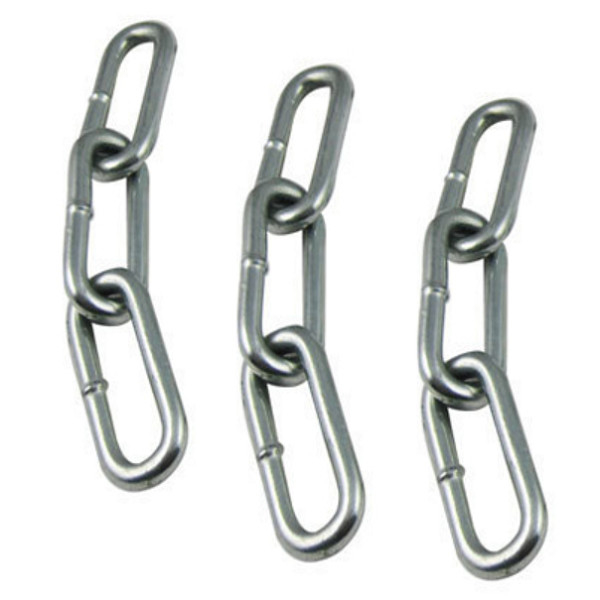

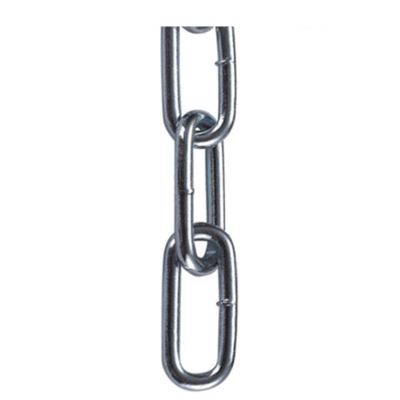

Chain DIN 5685 is a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. Chain din 5685 are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). We are able to offer relevant accessories of the chain.
Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized. Chains can be supplied in hanks, boxes, bags and on reels.
Drawing of Chain DIN 5685 Form C Long Link
Specifications of Chain DIN 5685 Form C Long Link
|
Size d mm |
Inside Length t mm |
Outside Width b mm |
Weight per 100m kg |
Test Load N |
Breaking Load N |
| 2.0 | 22.0 | 8.0 | 6.0 | 500 | 1250 |
| 2.5 | 24.0 | 10.0 | 10.0 | 750 | 2000 |
| 3.0 | 26.0 | 12.0 | 15.0 | 1120 | 2800 |
| 3.5 | 28.0 | 14.0 | 20.0 | 1500 | 3850 |
| 4.0 | 32.0 | 16.0 | 27.0 | 2000 | 5000 |
| 4.5 | 34.0 | 18.0 | 35.0 | 2500 | 6300 |
| 5.0 | 35.0 | 20.0 | 43.0 | 3150 | 7750 |
| 5.5 | 38.5 | 22.0 | 52.0 | 3800 | 9500 |
| 6.0 | 42.0 | 24.0 | 63.0 | 4500 | 11500 |
| 6.5 | 45.5 | 26.0 | 74.0 | 5400 | 13500 |
| 7.0 | 49.0 | 28.0 | 86.0 | 6000 | 15000 |
| 8.0 | 52.0 | 32.0 | 110.0 | 8000 | 20000 |
| 8.5 | 56.0 | 34.0 | 125.0 | 9000 | 22500 |
| 9.0 | 59.0 | 36.0 | 141.0 | 10000 | 25000 |
| 10.0 | 65.0 | 40.0 | 175.0 | 12500 | 31000 |
| 11.0 | 72.0 | 44.0 | 211.0 | 15000 | 38000 |
| 12.0 | 78.0 | 48.0 | 255.0 | 18000 | 45000 |
| 13.0 | 82.0 | 52.0 | 295.0 | 21200 | 53000 |
• It should be noted that the maximum load figures quoted are for guidance only. These chains are not tested.
