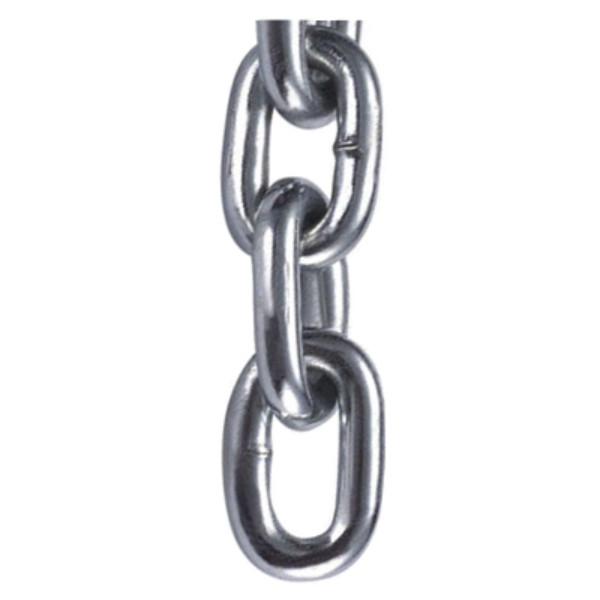

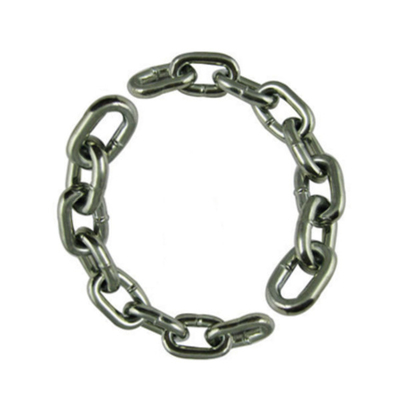

6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N

6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N
6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N
6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N

Large Image :  6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN5685A
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N

Description
Product Name: DIN5685A Short Link Chains Material: Carbon Steel
Surface: Galvanized Size: M2 - M13
Weight: 0.07 - 3.45 Kg/m Packing: Cartong + Pallet
High Light:

6mm short link galvanised chain 500N

,

8mm short link galvanised chain 21200N

,

DIN 5685 Chain

DIN5685A Short Link Chains

Chain DIN 5685 is a sort of welded, round steel chain with long or short-length links that are neither calibrated nor tested. Chain din 5685 are made to German Standard. The material of chain is in line with DIN 17151. The chain are not suitable for lifting applications, nor being subjected to static loads. There are two types of the chain din 5685, A (short) and C (long). We are able to offer relevant accessories of the chain.

Finishes of chain din 5685 are self-colored, black painted, bright zinc painted, and hot dip galvanized. Chains can be supplied in hanks, boxes, bags and on reels.



Drawing of Chain DIN 5685 Form A Short Link



Specifications of Chain DIN 5685 Form A Short Link

Size

d

mm

Inside Length

t

mm

Outside Length

b

mm

Weight per 100m

kg

Test Load

N

Breaking Load

N
2.0 12.0 8.0 7.0 500 1250
2.5 14.0 10.0 11.0 750 2000
3.0 16.0 12.0 16.5 1120 2800
3.5 18.0 14.0 22.5 1500 3850
4.0 19.0 16.0 30.0 2000 5000
4.5 20.0 18.0 39.5 2500 6300
5.0 21.0 20.0 50.0 3150 7750
5.5 23.0 22.0 60.5 3800 9500
6.0 24.0 24.0 73.0 4500 11500
6.5 26.0 26.0 86.0 5400 13500
7.0 28.0 28.0 100.0 6000 15000
8.0 32.0 32.0 130.0 8000 20000
8.5 34.0 34.0 149.0 9000 22500
9.0 36.0 36.0 165.0 10000 25000
10.0 40.0 40.0 205.0 12500 31000
11.0 44.0 44.0 250.0 15000 38000
12.0 48.0 48.0 290.0 18000 45000
13.0 52.0 52.0 345.0 21200 53000



6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 0

6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 1



Packing & Delivery



6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 2

6mm 8mm Short Link Galvanised Chain DIN 5685 Chain 500N - 21200N 3







Tag:

Round Steel Link Chain for lifting,

long link chains DIN5685C,

6mm short link galvanised chain 500N
