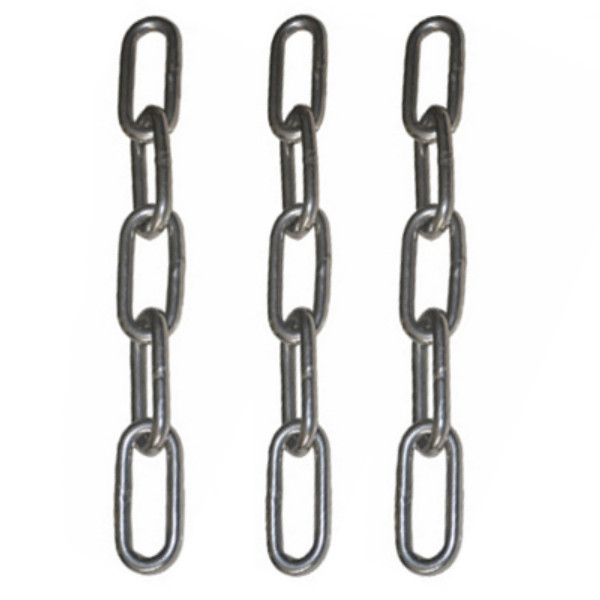

M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M

M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M
M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M
M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M

Large Image :  M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN763
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

M2 - M28 Din763 Link Chains Carbon Steel Chain 13.9kg/M

Description
Product Name: DIN763 Link Chains Material: Carbon Steel
Surface: Galvanized Size: M2 - M28
Weight: 0.06 - 13.9 Kg/m Packing: Cartong + Pallet
High Light:

M2 DIN 763 Link Chain

,

M28 DIN 763 Link Chain

,

carbon steel chain 13.9kg/m

DIN763 Link Chains

Chain DIN 763 is a kind of welded long link chain. Long link chain should never be used as a sling in either “basket” hitch or chokes configuration. Chain din 763 is non-calibrated and tested. The chain is made to DIN 763 and EN standards, with links side welded for extra strength and quality tested. The chain is suitable for all general purposes, engineering, industrial, agricultural and marine applications in conjunction with our accessories.

The protective finishes of the chain din 763 are zinc plated, black painted, hot dip galvanized, powder coated, or as your request. Please contact us if you have any specific requirements.





Drawing of Chain DIN 763





Specifications of Chain DIN 763



Size

d

mm

Dimensions

Weight

kg/100 m

Working Load

kg

Test Load

kn

Breaking Load

kn

t

mm

b

mm

3 26 12 15 55 1.05 3.2
4 32 16 27 100 2 6
5 35 20 43 160 3.15 10
6 42 24 63 224 4.5 14
7 49 28 86 300 6 18
8 52 32 110 400 8 25
9 59 36 141 530 10.5 32
10 65 40 175 630 12.5 40
11 72 44 211 790 15.8 47.5
12 78 48 255 940 18.8 56.5
13 82 52 295 1000 21.2 63
16 100 64 445 1600 33 100
18 113 70 565 2120 42.3 127
19 119 72 625 2370 47.3 142
20 120 75 700 2500 50 160
22 127 82 855 3170 63.3 190
25 140 88 1090 4090 81.7 245
Note Please contact us for more specifications.
