Product Details:
|
Product Name: | JIS Type Wire Rope Clip | Material: | Carbon Steel |
---|---|---|---|
Surface: | Galvanized | Size: | M6 - M38 |
Weight: | 0.047 - 3.4 Kg/pc | Packing: | Cartong + Pallet |
High Light: | M6 zinc plated tool clips,JIS Type zinc plated tool clips,M38 crosby wire rope |

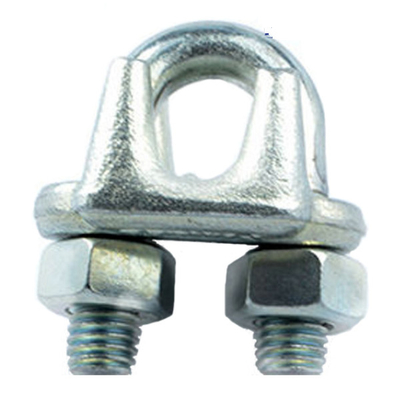

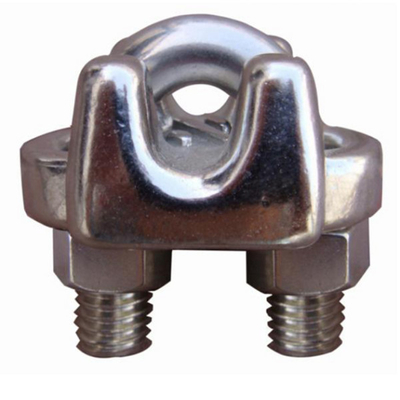

JIS Type Wire Rope Clips:
JIS type wire rope clip is used on wire rope eye connections when socketing or mechanical splicing is not feasible or when a temporary joint is required. And it is widely used in marine hardware. we has our own factories and also cooperate with other excellent factories. So you can get the most competitive price from us. Our professional sales team can also provide you the best service. Please feel free to contact with us on JIS type wire rope clips.
Details:
1. Standard: JIS Type
2. Material: Carbon Steel
3. Usage: Wire Rope Clip, marine hardware,etc.
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 6mm to 25mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Nominal Size (mm) | B(mm) | C(mm) | E(mm) | G12(mm) | Thread Dia(mm) | H(mm) | L(mm) | S(mm) | W/PCE(kg) |
6 | 6 | 29 | 24 | 14 | M6 | 5 | 35 | 20 | 0.047 |
8 | 6 | 36 | 31 | 18 | 8 | 6.5 | 40 | 20 | 0.08 |
10 | 7 | 45 | 35 | 22 | 10 | 8 | 50 | 28 | 0.15 |
12 | 8 | 51 | 39 | 26 | 13 | 10 | 60 | 35 | 0.25 |
14 | 9 | 53 | 45 | 28 | 12 | 10 | 65 | 40 | 0.29 |
16 | 10 | 60 | 48 | 32 | 14 | 11 | 75 | 45 | 0.35 |
18 | 11 | 62 | 0.53 | 34 | 14 | 11 | 80 | 50 | 0.45 |
20-22 | 12 | 78 | 62 | 44 | 18 | 15 | 100 | 60 | 0.96 |
24-25 | 13 | 86 | 68 | 48 | 20 | 16 | 110 | 65 | 1.25 |
