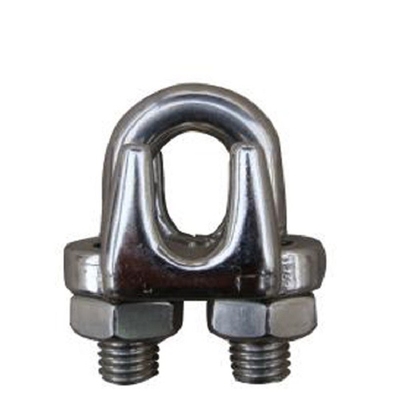

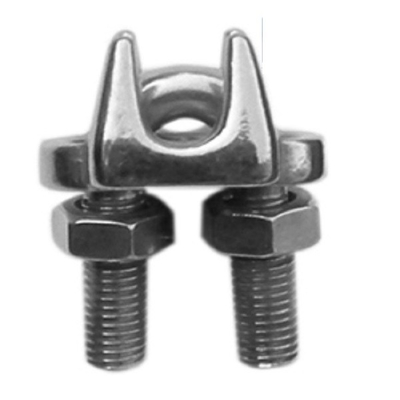

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm
Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm
Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm

Large Image :  Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: US Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm

Description
Product Name: Polished Stainless Steel US Type Wire Rope Clip Material: Stainless Steel
Surface: Polished Size: From 3mm To 76mm
Usage: Wire Rope Clip, Marine Hardware Packing: Cartong + Pallet
High Light:

Polished Wire Rope Clip

,

Wire Rope Clip 3mm

,

stainless steel cable clamps 76mm

Polished Stainless Steel US Type Wire Rope Clip

Polished stainless steel US type wire rope clip are designed and made for rugged, heavy service. Our company has been specialized in producing this product for several years. And all sizes are available. We have our own factory and also cooperate with other exllent factories, so the price is very competitive. What's more, our professional sales team will offer the best service and make you feel enjoyable. Welcome to get in touch with us.

Details:

1. Standard: US type
2. Material: Stainless steel
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Polished
5. Size: From 3mm to 76mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to
customers requirements
Specification:

Size A B C D E G H
mm inch mm mm mm mm mm mm
3 3/16 18 11 12 10 20 23
5 1/4 24 14 15 12 23 29
6 5/16 26 15 19 16 30 36
8 3/8 35 19 22 18 33 43
10 7/16 38 19 25 23 41 49
11 1/2 47 25 30 26 46 58
12 1/2 47 25 30 28 48 58
14 9/16 57 32 33 31 52 63
16 9/16 60 32 33 34 52 63
20 5/8 70 36 38 35 57 72
22 3/4 79 41 44 40 62 80
25 3/4 89 46 47 45 66 88
28 3/4 98 51 51 48 71 91
32 7/8 108 54 59 56 80 105
35 7/8 118 59 60 59 80 106
38 7/8 125 60 66 62 87 113
41 1 135 60 70 68 92 121
44 1-1/8 149 70 78 73 95 133
50 1-1/4 165 76 84 86 113 148
57 1-1/4 181 84 98 97 114 160
64 1-1/4 197 86 105 108 114 164
70 1-1/4 211 89 111 127 127 171
76 1-1/2 233 98 121 133 175 192

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm 0Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm 1Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm 2

Packing & Delivery

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm 3

Polished Wire Rope Clip US Type Stainless Steel Cable Clamps 3mm To 76mm 4
