Product Details:
|
| Product Name: | Italian Type Drop Forged Wire Rope Clip | Material: | Malleable |
|---|---|---|---|
| Surface: | Galvanized | Size: | M4 - M38 |
| Weight: | 0.01 - 1.08 Kg/pc | Packing: | Cartong + Pallet |
| High Light: | Carbon Steel SGS Wire Rope Clip,drop forged wire rope clips 1.08KG,drop forged cable clamps Italian Type |
||

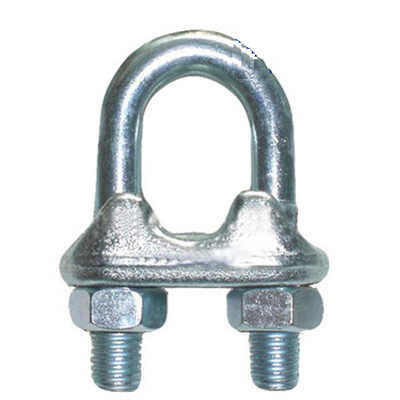

Italian Type Drop Forged Wire Rope Clip:
Italian type drop forged wire rope clip can be used for sustaining overhead loads. It is made up by carbon steel. And this product has high cost performance and also has gained some related certifications, such as ISO9001 and CE. Our company has a professional team and they can provide you with the best service. Welcome to contact with us.
Details:
1. Standard: Italian Type
2. Material: Carbon Steel
3. Usage: Wire Rope Clip, marine hardware,etc.
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 5mm to 28mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size | Carico | Weight |
| IN. | ROTT.KG | KG/100PCS |
| 5 | 1200 | 2.04 |
| 6 | 1600 | 3 |
| 8 | 2000 | 4.5 |
| 10 | 3500 | 7 |
| 11 | 3900 | 7.3 |
| 12 | 4800 | 11.1 |
| 14 | 5400 | 11.6 |
| 16 | 6000 | 11.7 |
| 18 | 7000 | 23 |
| 20 | 8400 | 25 |
| 22 | 10200 | 27 |
| 24 | 10800 | 29 |
| 28 | 13000 | 62 |
