Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch

Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch
Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch
Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch

Large Image :  Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: U.S Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

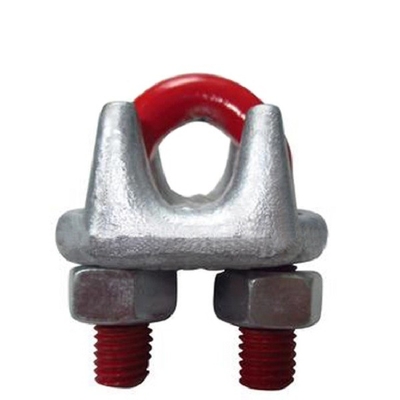

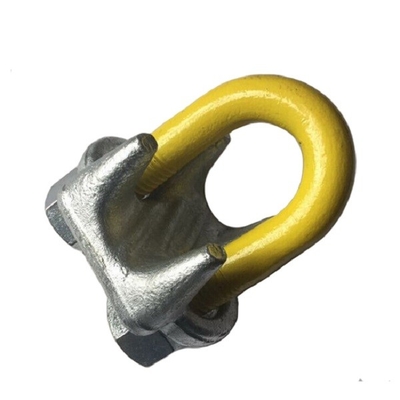

Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch

Description
Product Name: Carbon Steel Electric Galvanized U.S Type Wire Rope Clip Material: Carbon Steel, Stainless Steel
Surface: Electro Galvanized, Hot Dipped Galvanized Size: From 1/8 Inch To 3-1/2 Inch
Usage: Wire Rope Clip, Marine Hardware, Etc. Packing: Cartong + Pallet
High Light:

Electric Wire Rope Clip

,

Wire Rope Clip 1/8 Inch

,

steel wire clips 3 - 1/2 Inch

Carbon Steel Electric Galvanized U.S Type Wire Rope Clip

US type wire rope clip is designed and made for rugged, heavy service. Our company can provide you with virous US types of wire rope clips, such as galv malleable wire rope clip, drop forged fist grip wire rope clip, drop forged wire rope clip and so on. All the products have required relative society certification. And our professional sales team will offer you the best sevice. Please feel freee to contact with us.

Details:

1. Standard: US Type

2. Material: Carbon Steel, Stainless Steel

3. Usage: Wire rope clip, marine hardware

4. Surface Treatment: Electro galvanized, Hot dipped galvanized

5. Size: From 1/8 inch to 3-1/2 inch

6. Packing: Gunny bag or carton and pallet / by customer requirments

7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.

8. Certifications: ISO9001, CE, etc.

9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size(in) Dimensions(in) Weight Each(kg/pc)
A G F D E
1/8 0.47 0.72 0.94 0.22 0.41 0.002
3/16 0.59 0.97 1.16 0.25 0.50 0.003
1/4 0.75 1.03 1.44 0.31 0.66 0.003
5/16 0.88 1.38 1.69 0.38 0.72 0.004
3/8 1.00 1.50 1.94 0.44 0.91 0.005
7/16 1.19 1.88 2.28 0.50 1.03 0.005
1/2 1.19 1.88 2.28 0.50 1.13 0.005
9/16 1.31 2.25 2.50 0.56 1.22 0.006
5/8 1.31 2.38 2.50 0.56 1.34 0.006
3/4 1.50 2.75 2.84 0.62 1.41 0.007
7/8 1.75 3.12 3.16 0.75 1.59 0.008
1 1.88 3.50 3.47 0.75 1.78 0.009
1-1/8 2.00 3.88 3.59 0.75 1.91 0.009
1-1/4 2.31 4.25 4.13 0.88 2.19 0.011
1-3/8 2.38 4.63 4.19 0.88 2.31 0.011
1-1/2 2.59 4.94 4.44 0.88 2.44 0.012
1-5/8 2.75 5.31 4.75 1.00 2.66 0.013
1-3/4 3.06 5.75 5.28 1.13 2.94 0.014
2 3.38 6.44 5.88 1.25 3.28 0.015
2-1/4 3.88 7.13 6.38 1.25 3.19 0.018
2-1/2 4.13 7.69 6.63 1.25 3.69 0.019



Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch 0Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch 1Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch 2



Packing & Delivery

Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch 3

Electric Wire Rope Clip U.S Type Carbon Steel Galvanized 1/8 Inch To 3-1/2 Inch 4
