Product Details:
|
| Product Name: | U.S. Type Drop Forged Wire Rope Clip | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized | Size: | 1/8 - 3-1/2'' |
| Weight: | 0.03 - 18.15 Kg/pc | Packing: | Cartong + Pallet |
| High Light: | 0.125in Wire Rope Clip,3.5in forged wire rope clips,forged wire rope clamp CE |
||

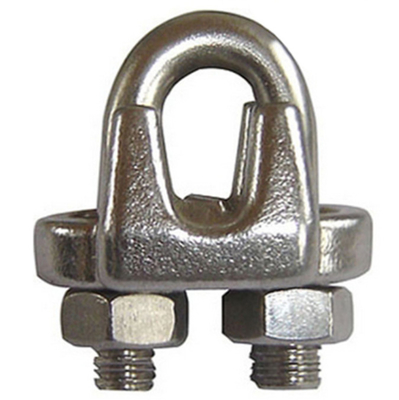

U.S. Type Drop Forged Wire Rope Clip:
Drop forged wire rope clips are designed and made for rugged, heavy service. And this is a US type drop forged wire rope clip, which is made up of forged steel. Different size is available. What's more, these products have abtained ISO9001 and CE certifications. We are looking forward to be your business partner.
Details:
1. Standard: US Type
2. Material: Forged Steel
3. Usage: Wire Rope Clip, marine hardware,etc.
4. Surface Treatment: Electro galvanized, Hot dipped galvanized, Self-colored polished
5. Size: From 1/8 inch to 3-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size(in) | Dimensions(in) | Weight Each(kg/pc) | ||||
| A | G | F | D | E | ||
| 1/8 | 0.47 | 0.72 | 0.94 | 0.22 | 0.41 | 0.002 |
| 3/16 | 0.59 | 0.97 | 1.16 | 0.25 | 0.50 | 0.003 |
| 1/4 | 0.75 | 1.03 | 1.44 | 0.31 | 0.66 | 0.003 |
| 5/16 | 0.88 | 1.38 | 1.69 | 0.38 | 0.72 | 0.004 |
| 3/8 | 1.00 | 1.50 | 1.94 | 0.44 | 0.91 | 0.005 |
| 7/16 | 1.19 | 1.88 | 2.28 | 0.50 | 1.03 | 0.005 |
| 1/2 | 1.19 | 1.88 | 2.28 | 0.50 | 1.13 | 0.005 |
| 9/16 | 1.31 | 2.25 | 2.50 | 0.56 | 1.22 | 0.006 |
| 5/8 | 1.31 | 2.38 | 2.50 | 0.56 | 1.34 | 0.006 |
| 3/4 | 1.50 | 2.75 | 2.84 | 0.62 | 1.41 | 0.007 |
| 7/8 | 1.75 | 3.12 | 3.16 | 0.75 | 1.59 | 0.008 |
| 1 | 1.88 | 3.50 | 3.47 | 0.75 | 1.78 | 0.009 |
| 1-1/8 | 2.00 | 3.88 | 3.59 | 0.75 | 1.91 | 0.009 |
| 1-1/4 | 2.31 | 4.25 | 4.13 | 0.88 | 2.19 | 0.011 |
| 1-3/8 | 2.38 | 4.63 | 4.19 | 0.88 | 2.31 | 0.011 |
| 1-1/2 | 2.59 | 4.94 | 4.44 | 0.88 | 2.44 | 0.012 |
| 1-5/8 | 2.75 | 5.31 | 4.75 | 1.00 | 2.66 | 0.013 |
| 1-3/4 | 3.06 | 5.75 | 5.28 | 1.13 | 2.94 | 0.014 |
| 2 | 3.38 | 6.44 | 5.88 | 1.25 | 3.28 | 0.015 |
| 2-1/4 | 3.88 | 7.13 | 6.38 | 1.25 | 3.19 | 0.018 |
| 2-1/2 | 4.13 | 7.69 | 6.63 | 1.25 | 3.69 | 0.019 |
Packing & Delivery
