Product Details:
|

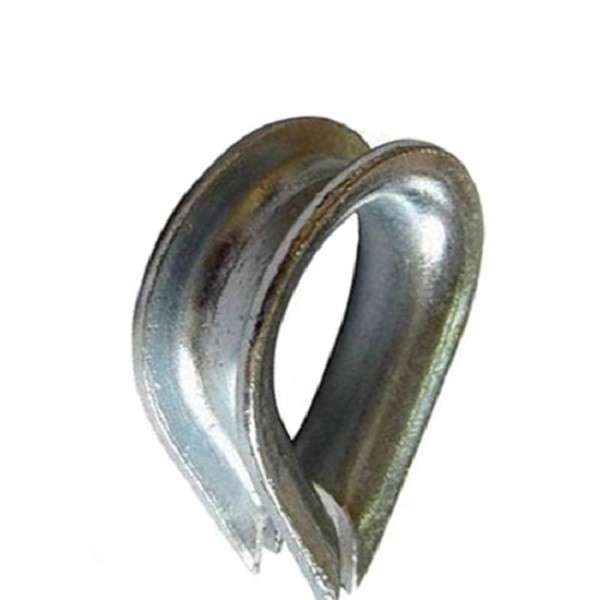

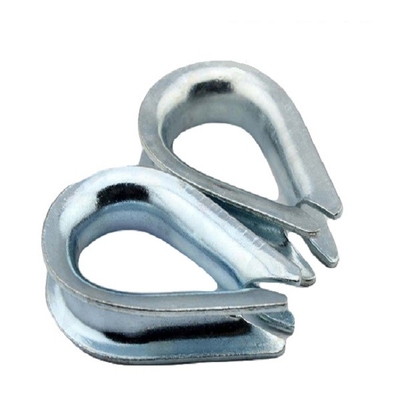

| Product Name: | Galvanized Carbon Steel Commercial Type Thimble | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized | Size: | From 6mm To 24mm |
| Weight: | 1.7 - 40 Kg/pc | Packing: | Cartong + Pallet |
| High Light: | Commercial metal rope thimble,metal rope thimble 6mm,round rope thimbles 24mm |
||
Our company has been specialized in producing carbon steel commercial type thimbles for many years and we also co-operate with other excellent factories, so the price is very competitive. We are looking forward to making business relationship with you.
Details:
1. Model: Commercial Type Thimble
2. Material: Carbon steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 6mm to 24mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size | Dimensions(mm) | WT/100PCS | |||||
| mm | A | B | C | D | L | T | kg |
| 6 | 11 | 19 | 30 | 29 | 38 | 2.5 | 1.7 |
| 8 | 13 | 21 | 35 | 30 | 45 | 2.5 | 3.4 |
| 10 | 16 | 25 | 38 | 37 | 51 | 3 | 4.4 |
| 12 | 18 | 32 | 49 | 45 | 64 | 3 | 7.3 |
| 16 | 22 | 45 | 75 | 59 | 90 | 3.2 | 15.5 |
| 20 | 25 | 49 | 81 | 67 | 102 | 4.8 | 20 |
| 22 | 32 | 55 | 89 | 78 | 114 | 4.8 | 28 |
| 24 | 33 | 59 | 99 | 82 | 127 | 5.5 | 40 |
