Product Details:
|
| Product Name: | DIN3091 Wire Rope Thimble | Material: | Carbon Steel |
|---|---|---|---|
| Surface: | Galvanized | Size: | M8 - M40 |
| Weight: | 0.122 - 12.74 Kg/pc | Packing: | Cartong + Pallet |
| High Light: | DIN3091 wire rope cable thimbles,wire rope cable thimbles M8,crosby solid thimble M40 |
||

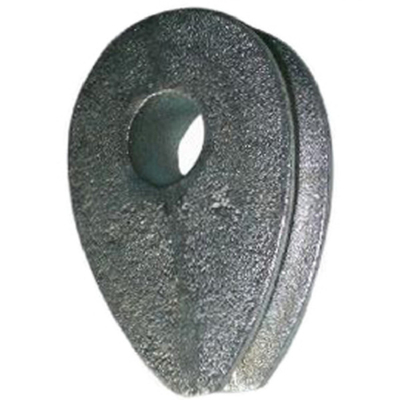

DIN 3091 Wire Rope Thimble:
Our company has produced this model for several years. Various sizes are available and the price is competitive. Our professional sales team will provide you with the best service. Welcome to get in touch with us.
Details:
1. Model: DIN 3091 Wire Rope Thimble
2. Material: Carbon Steel, meallable steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
| Size(mm) | C | D1 | L |
| 8 | 40 | 14 | 66 |
| 10 | 50 | 18 | 82 |
| 12 | 60 | 21 | 98 |
| 14 | 70 | 25 | 114 |
| 16 | 80 | 28 | 130 |
| 18 | 90 | 31 | 145 |
| 20 | 100 | 35 | 161 |
| 22 | 110 | 38 | 177 |
| 24 | 120 | 41 | 193 |
| 26 | 130 | 44 | 209 |
| 28 | 140 | 47 | 224 |
| 32 | 160 | 53 | 256 |
| 36 | 180 | 59 | 288 |
| 40 | 200 | 65 | 320 |
| 44 | 220 | 70 | 352 |
| 48 | 240 | 76 | 384 |
