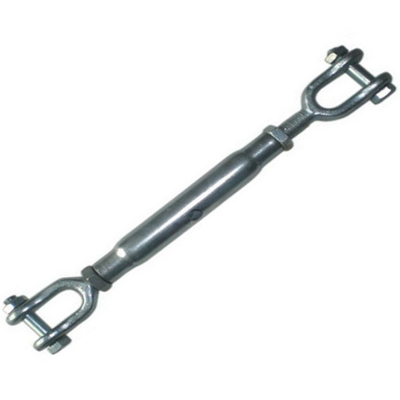

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48
Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48
Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48

Large Image :  Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN1478
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48

Description
Product Name: Alloy Steel Zinc Plated DIN1478 Turnbuckle Material: Alloy Steel
Surface: Zinc Plated, Self Color Size: M6-M48
Type: Hook&hook, Eye &hook, Eye&eye Packing: Cartong + Pallet
High Light:

Zinc Plated Turn Buckle M48

,

Turn Buckle M6

,

DIN1478 Turnbuckle Alloy Steel

Alloy Steel Zinc Plated DIN1478 Turnbuckle

This product is made by high quality alloy steel with plalted zinc on the surface. And each turnbuckle body can be mixed and matched with jaw, eye and stub end. I believe its various category and good quality will satisfied you.

Product details:

1. Item: Alloy Steel Zinc Plated DIN 1478 Turnbuckle

2. Standard: DIN 1478 type

3. Material: alloy steel

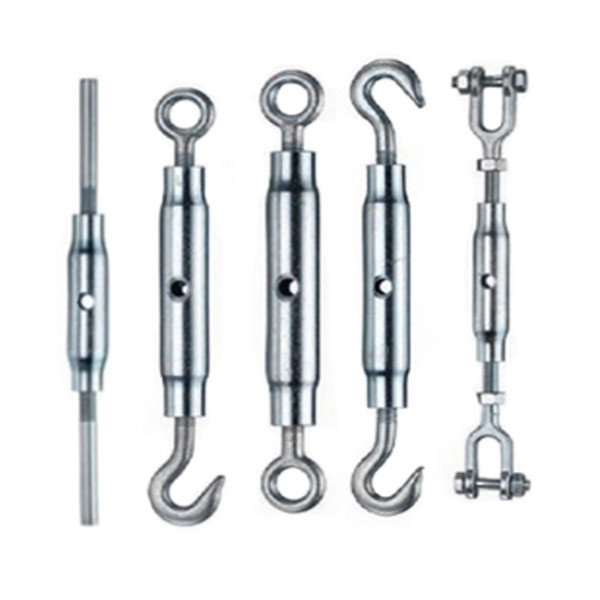

4. Type: hook&hook, eye &hook, eye&eye

5. Technology: forged

6. Surface: zinc plated, self color

7. Size: M6-M48

8. Usage: chain and wire rope accessories

9. Special specification and marks can be made according to customers requirement

Specification:

Thread L1(mm) L3(mm) L5(mm) b1(mm) d1(mm) d4(mm) WT kg/100pcs
M6 110 85 172 8.5 9 6 11.6
M8 110 85 182 11 10 8 19.31
M10 125 112 213 13.5 14 8 31
M12 125 117 238 15.5 16 10 42
M16 170 138 320 19 22 10 89
M20 200 170 367 20.5 24 12 158
M24 255 205 447 26 27 12 292
M30 255 225 512 33 31 16 430
M36 295 255 568 44 43 16 605
M42 330 340 683 48 49 20 1160
M48 355 360 755 58 58 20 1800



Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 0

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 1Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 2



Packing & Delivery

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 3

Zinc Plated Turn Buckle DIN1478 Turnbuckle Alloy Steel M6 - M48 4
