Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56

Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56
Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56
Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56

Large Image :  Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN1480
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56

Description
Product Name: Galvanized / Self Color Carbon Steel Turnbuckles DIN1480 Material: Mild Steel. Carbon Steel. Malleable. Alloy Steel. Stainless Steel Etc.
Surface: Electric Galvanized, Self-colored, Hot Dip Galvanized Size: M5-M56
Weight: 0.2-23tons Packing: Cartong + Pallet
High Light:

Galvanized wire rope turnbukle M5

,

wire rope turnbuckle M56

,

turn buckle 16mm DIN1480

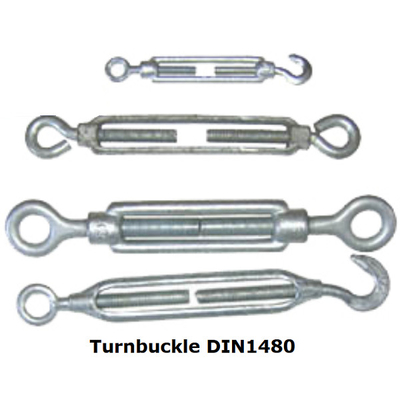

Galvanized / Self Color Carbon Steel Turnbuckles DIN1480

DIN1480 turnbuckles are made by high quality carbon steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. Because of the characteristics of it, it can be widely used in large construction site, large factory, shipping, bridge constraction and so on. And special specification and marks can be made according to customers requirement.

Product details:

1. Model NO.:DIN 1480

2. Material: Mild steel. Carbon steel. Malleable. Alloy steel. Stainless steel etc.

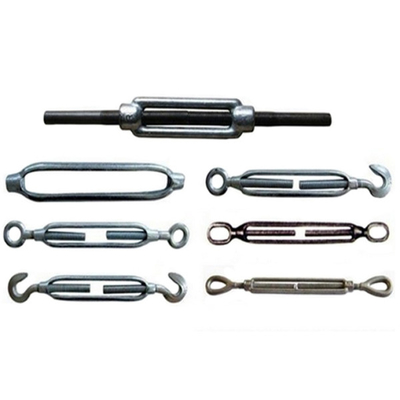

3. Type:Hook & Hook,Hook and Eye,Eye and Eye,etc

4. Usage:Marine Industry

5. Installation:External

6. Condition:New

7. Surface:Electric Galvanized, self-colored, hot dip galvanized

8. Customized: Yes

9. Size:M5-M56

10. Export Markets:Global

11. Packing:Carton with Pallet

12. Standard:ISO, CE, SGS

Specification:

Size

W.L.L.

Ton

Body Length

mm

N.W.

Kg

M5 0.2 70 0.6
M6 0.22 110 0.078
M8 0.41 110 0.16
M10 0.65 125 0.29
M12 0.9 125 0.43
M14 1.1 140 0.62
M16 1.3 170 0.92
M18 1.5 180 1.25
M20 1.7 200 1.63
M22 3.2 220 2.22
M24 3.9 255 3.00
M27 4.5 255 3.35
M30 6.2 255 4.60
M33 7.3 295 6.65
M36 8.5 295 7.68
M39 10 330 10.41
M42 12 330 12.90
M45 16 355 16.00
M48 20 355 21.00
M52 23 355 23.00
M56 23 355 24.00



Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 0Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 1



Packing & Delivery

Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 2

Galvanized Self Color Wire Rope Turn Buckle 16mm DIN1480 M5 - M56 3
