1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle

1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle
1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle
1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle 1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle

Large Image :  1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: US Type Turnbuckle Jaw and Jaw UU
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle

Description
Product Name: US Type Turnbuckle Jaw And Jaw UU Material: Carbon Steel
Surface: Galvanized, Self Color Size: M5 - M16
Weight: 0.048 - 0.84 Kg Packing: Cartong + Pallet
High Light:

1/4in jaw and jaw turnbuckle

,

jaw and jaw turnbuckle ISO

,

quick release turnbuckle electric galvanized

Galvanized / Self Color Carbon Steel US Type Turnbuckle Jaw and Jaw UU

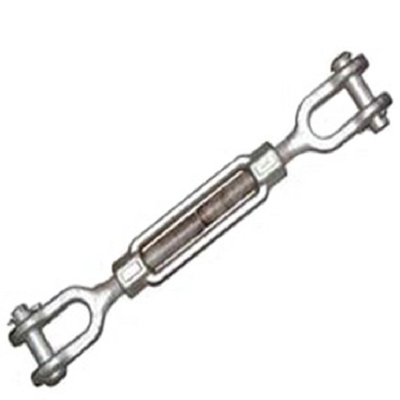

US Type Turnbuckle Jaw and Jaw UU

Stainless steel US type turnbuckles with jaw and jaw have the best corrision resistance among standard turnbuckles. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. So, they can be used for a variety of application, such as boats, yachts, cable railing, and shade sails.

Product details:

1. Name: stainless steel US type turnbuckle

2. Material: stainless steel

3. Techenology: drop forged

4. Size: from1/4 to 2-3/4

5. Color:self color

6. Standard: US type

7. Usage: chain and wire rope accessoried

8. Surface: electric galvanized, hot dip galvanized

9. High grade carbon steel as material

10. Special specification and marks can be made according to customers requirement

Specification:



US Type Turnbuckle UU
(WLL) A mm B mm C mm D mm E mm L mm WEIGH/PC
0.23 8 10 16 6 102 175 0.16
0.36 9 12 22 6 114 212 0.24
0.54 11 13 22 8 152 258 0.37
1 15 16 27 10 152 292 0.71
1 15 16 27 10 229 368 0.79
1 15 16 27 10 305 445 1.09
1.59 18 19 33 13 152 325 1.23
1.59 18 19 33 13 229 401 1.56
1.59 18 19 33 13 305 478 1.77
2.36 21 24 38 16 152 356 1.86
2.36 21 24 38 16 229 432 2.48
2.36 21 24 38 16 305 508 2.92
2.36 21 24 38 16 152 660 3.66
3.27 25 29 44 19 229 543 3.71
3.27 25 29 44 19 305 695 4.89
4.54 28 30 52 22 457 425 4.62
4.54 28 30 52 22 305 557 5.68
4.54 28 30 52 22 457 729 6.87
4.54 28 30 52 22 152 882 8.2
6.89 34 44 71 29 305 644 9.34
6.89 34 44 71 29 457 796 11.19
6.89 34 44 71 29 610 948 12.79
9.71 42 52 71 35 305 673 13.92
9.71 42 52 71 35 457 826 16.67
9.71 42 52 71 35 610 978 18.45
12.7 48 60 86 42 457 899 24.49
12.7 48 60 86 42 610 1051 28.74
16.78 55 64 94 51 610 1157 42.75
27.22 68 73 113 58 610 1244 74.84
34.02 75 89 106 71 610 1289 89.81

1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle 0



Packing & Delivery

1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle 1

1/4 To 2 - 3/4 US Type Jaw And Jaw UU Turnbuckle Quick Release Turnbuckle 2
