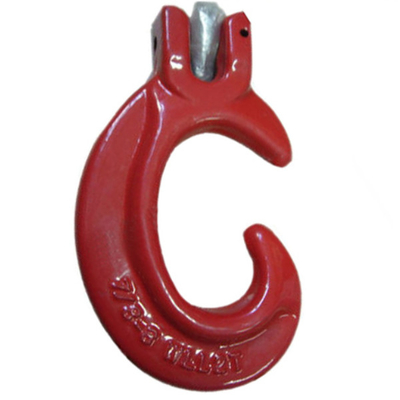

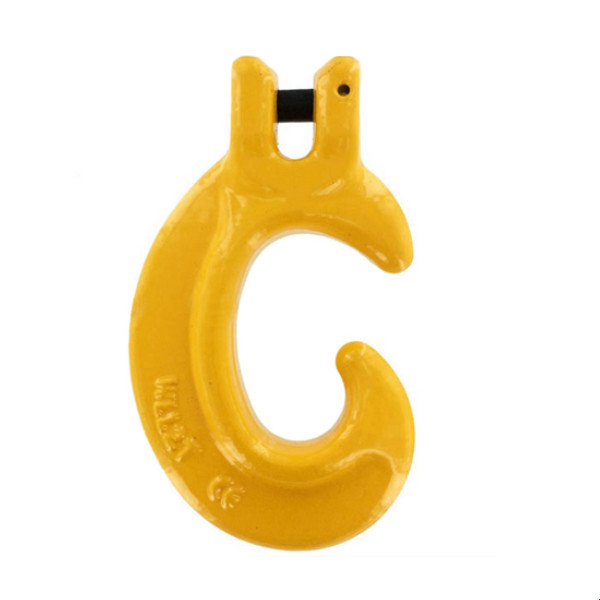

Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm

Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm
Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm
Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm

Large Image :  Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm

Description
Product Name: Zinc Plated G80 Special Clevis C Hook Material: High Alloy Steel
Surface: Hot Dip Galvanized, Zinc Plated Or Self Color Size: 7/8mm-16mm
Packing: Cartong + Pallet WLL: 2T-8T
High Light:

Zinc Plated G80 Hook

,

G80 Hook 7/8mm

,

Special Clevis C Hook 16mm

Zinc Plated G80 Special Clevis C Hook

Clevis C hooks are simple to assemble with chains without any intermediate coupling-links. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product details:

1. Item: G80 special clevis C hook

2. Grade: 80

3. Material: high alloy steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated or self color

6. WLL: 2T-8T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 7/8mm-16mm

10.Special specifications and marks can be made according to customers requirement

Specification:

Chain Size(mm) Weight(KG) WLL(T) B.L(T) A(mm) B(mm) E(mm) L(mm)
7/8 0.57 2 8 9.5 35 20 136
10 1.4 3.15 12.6 13 46 29.5 189
13 3 5.3 21.1 16.5 59 39.5 246
16 5.4 8 32 18.5 72 46.5 298



Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm 0

Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm 1Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm 2



Packing & Delivery



Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm 3

Zinc Plated G80 Hook Special Clevis C Hook 7/8mm To 16mm 4
