Drop Forged Galvanized G80 Connecting Link 1.4T To 39.3T

Drop Forged Galvanized G80 Connecting Link 1.4T To 39.3T

Drop Forged Galvanized G80 Connecting Link 1.4T To 39.3T

Large Image : Drop Forged Galvanized G80 Connecting Link 1.4T To 39.3T

Product Details:

Place of Origin:	CHINA
Brand Name:	LKY
Certification:	CE, ISO
Model Number:	G80

Payment & Shipping Terms:

Minimum Order Quantity:	1 ton
Price:	Negotiable
Packaging Details:	Carton + Pallet
Delivery Time:	60 days
Payment Terms:	T/T
Supply Ability:	200 tons per month

Contact Now

Drop Forged Galvanized G80 Connecting Link 1.4T To 39.3T

Description

Product Name:	Drop Forged G80 Galvanized Connecting Link	Material:	Alloy Steel
Surface:	Hot Dip Galvanized, Electric Galvanized, Color Painted	Size:	7.6mm-40mm
Packing:	Cartong + Pallet	WLL:	1.4T-39.3T
High Light:	Drop Forged g80 connecting link , g80 connecting link 1.4T , g80 master link 39.3T

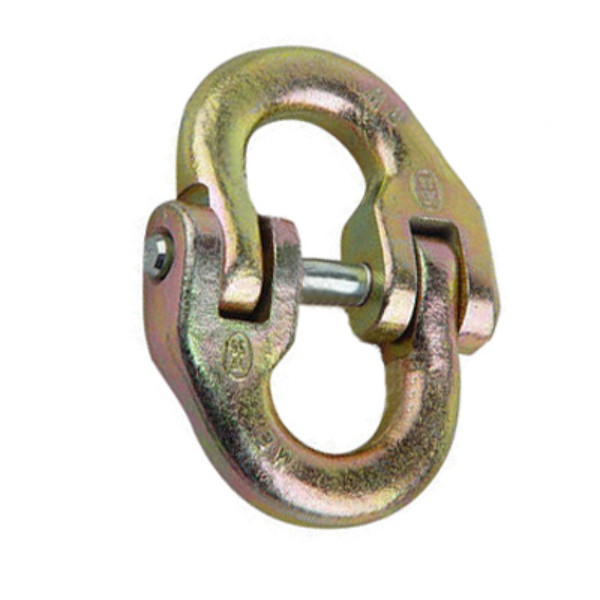

Drop forged G80 Galvanized Connecting Link

Galvanized connecting link can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. It is made by quenched and tempered alloy steel for high tensile strength and wear resistance. They can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes.

Product Details:

1. Item: Galvanized connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, electric galvanized, Color painted

6. WLL: 1.4T-39.3T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 7.6mm-40mm

10. Special specifications and marks can be made according to customers requirement

Specification:

Size	Weight(kg)	WLL(T)	B.L(T)	A(mm)	H(mm)	K(mm)	L(mm)
6	0.1	1.4	5.6	14	7.6	44.5	60
8	0.22	2.5	10	18.5	10	61.5	84.5
10	0.45	4	16	23	12.6	72	97.5
13	1.15	6.7	26.8	27.5	16.8	89	127
16	1.75	10	40	33.5	21	103	145
20	2.7	16	64	42	24.5	116	175
22	4.02	19	76	48	27	135	193
26	5.1	26.5	106	61	32	164	228
32	8.5	39.3	157.2	80	40	194	274
