0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch

0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch
0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch
0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch

Large Image :  0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch

Description
Product Name: Zinc Plated G80 US Type Shank Hook With Latch Material: Alloy Steel Or Carbon Steel
Surface: Hot Dip Galvanized, Zinc Plated Or Self Color Size: 0.21kg-1.04kg
Packing: Cartong + Pallet WLL: 0.25T-2T
High Light:

1.04kg G80 Hook

,

G80 Hook US Type

,

Shank hook with latch

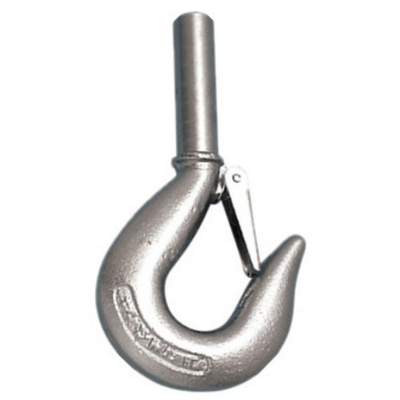

Zinc Plated G80 US Type Shank Hook With Latch

G80 US type shank hook with latch is a strong forging hook, which is specialized in maritime shipping and port handling. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.

Product details:

1. Item: G80 US Shank Hook with Latch

2. Type: US type

3. Grade: 80

4. Material: alloy steel or carbon steel

5. Technology: drop forged

6. Surface: hot dip galvanized, zinc plated or self color

7. WLL: 0.25T-2T

8. Breaking load: 4 times of working load

9. Usage: lifting, rigging

10. Size: 0.21kg-1.04kg

11. Special specifications and marks can be made according to customers requirement

Specification:

Weight(kg) WLL(ton) B(mm) C(mm) E(mm) L(mm) M(mm)
0.21 0.25 65 29 16 105 12
0.29 0.5 69 30 16 109 14
0.57 1 81 33 20 123 16
1.04 2 104 42 24 155 20



0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 0

0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 10.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 2



Packing & Delivery



0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 3

0.21kg - 1.04kg G80 Hook Zinc Plated US Type Shank Hook With Latch 4
