Product Details:
|
| Product Name: | G80 Alloy Steel U.S Type Clevis Grab Hook | Material: | Alloy Steel |
|---|---|---|---|
| Surface: | Hot Dip Galvanized, Zinc Plated Or Self Color | Size: | 1/4”-3/4” |
| Packing: | Cartong + Pallet | WLL: | 3600lbs-27000lbs |
| High Light: | Alloy Steel crosby clevis grab hook,crosby clevis grab hook US Type,G80 clevis grab hook |
||

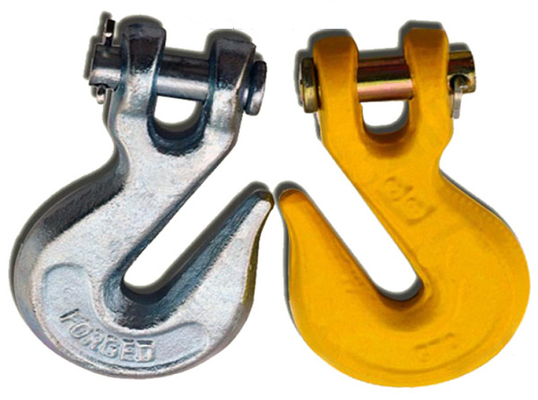

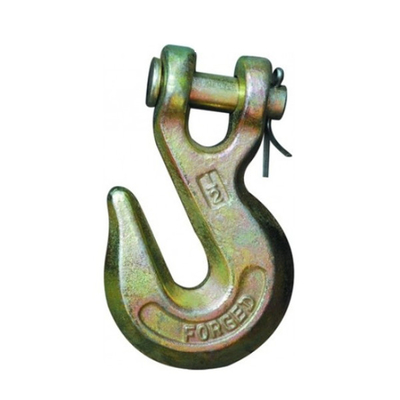

Alloy steel US type clevis grab hook is made by high quality alloy steel with hot dip galvanizing and zinc plating on the surface. Its work load is from 3600lbs to 27000lbs. It has the advantages of small volume, light weight and high strength. The maximum test load is 2 times of work load, and the minimum break load is 4 times of work load.
Product details:
1. Item: Alloy steel US type clevis grab hook
2. Type: US type
3. Grade: 80
4. Material: high alloy steel
5. Surface: hot dip galvanized, zinc plated or self color
6.Technology: drop forged
7. WLL:3600lbs-27000lbs
8.Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 1/4”-3/4”
11.Special specifications and marks can be made according to customers requirement
Specification:
| Size(in) | W.L.L.(lbs) | B(in) | E(in) | P(in) | R(in) | Weight(lbs) |
| 1/4' | 3600 | 0.36 | 0.4 | 0.38 | 1.97 | 0.4 |
| 5/16' | 5400 | 0.4 | 0.44 | 0.44 | 2.26 | 0.79 |
| 3/8' | 7500 | 0.48 | 0.5 | 0.47 | 2.63 | 1 |
| 7/16' | 10000 | 0.66 | 0.56 | 0.56 | 2.75 | 1.5 |
| 1/2' | 12750 | 0.75 | 0.66 | 0.63 | 3.19 | 2.1 |
| 5/8' | 19000 | 0.91 | 0.78 | 0.75 | 4.09 | 4.2 |
| 3/4' | 27000 | 0.94 | 0.94 | 0.88 | 4.63 | 6.5 |
