Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type

Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type
Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type
Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type

Large Image :  Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Wire Rope Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type

Description
Product Name: Electric Galvanized Carbon Steel Wire Rope Sleeve Material: Aluminiuml
Technology: Casting Size: 1.19mm-15.88mm
Usage: Wire Rope Fitting Packaging: Gunny Bag Or Carton Then On Pallet
High Light:

Hourglass crimping aluminum ferrules

,

crimping aluminum ferrules Aluminiuml Casting

,

wire rope aluminium ferrules US Type

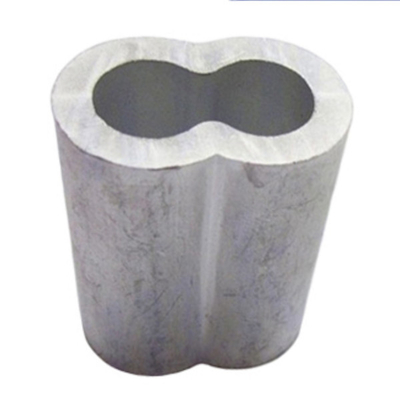

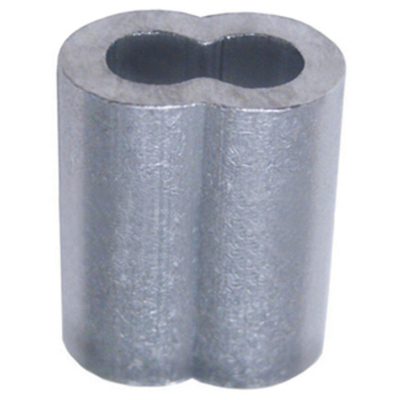

Aluminiuml Casting US Type Hourglass Aluminium Ferrule

US type hourglass aluminium wire rope ferrule are produced from 1.19mm-15.88mm. Using such aluminium sleeve manufactured through unique processing can improve the quality of pressed wire rope products, even higher than the national standard.

Product Details:

1. Model:US type hourglass aluminium wire rope ferrule

2. Material: Aluminiuml

3. Technology: Casting

4. Shape: 8 shape

5. Usage: Wire rope fitting

6. Specificaion: 1.19mm-15.88mm

7. Packaging: Gunny bag or carton then on steel pallet

8. Special specification and marks can be made according to order quantity

Specification:



Size Weight A B C D L
mm kgs/1000pcs mm mm mm mm mm
1.19 0.276 1.59 3.18 3.6 5.2 9.5
1.58 0.433 1.98 3.97 4.4 6.4 9.5
1.98 0.645 2.38 4.76 5.2 7.9 9.5
2.38 1.45 3.18 6.35 7.1 10.3 12.7
3.18 2.7 3.97 7.94 8.7 12.7 16
3.97 3.67 4.76 9.53 9.53 14.3 17
4.76 7.18 5.56 11.11 11 16.7 25
5.56 10 6.35 12.7 12.7 19 26
6.35 11.76 7.14 14.29 13.5 20.6 28
7.14 13.62 7.94 15.88 14.3 22.2 30
7.94 20.94 9.53 19.05 17.5 26.2 32
9.53 28.18 11.11 22.23 19.1 29.4 36
11.11 52 12.7 25.4 23.8 36.5 42
12.7 80.15 14.29 28.58 27 41.3 50
14.29 99.88 15.88 31.75 28.6 44.5 54
15.88 139.78 17.46 34.93 31.8 49.2

64





Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type 0

Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type 1Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type 2



Packing & Delivery



Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type 3

Hourglass Crimping Wire Rope Aluminium Ferrule Aluminiuml Casting US Type 4
