8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve

8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve
8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve
8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve 8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve

Large Image :  8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Wire Rope Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve

Description
Product Name: Electric Galvanized Carbon Steel Wire Rope Sleeve Material: Low-carbon Alloy Steel
Surface: Electric Galvanized, Hot Dipped Galvanized, Self-colored Size: 8mm-32mm
Usage: Wire Rope Fitting Packaging: Gunny Bag Or Carton Then On Steel Pallet
High Light:

8mm Rope Rigging Hardware

,

32mm Rope Rigging Hardware Galvanized

,

Carbon Steel wire rope sleeve

Electric galvanized Carbon Steel Wire Rope Sleeve

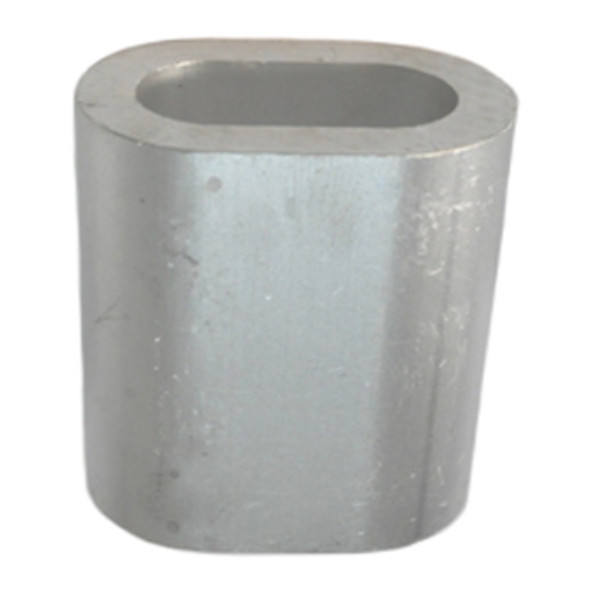

Carbon steel wire rope sleeve is made from specially processed low-carbon alloy steel. It is conforming to ASME B30.9, all sling with swage sockets shall be tested for proof load. And it is suitable for the lifting job where the joint is under wear abrasion and under extrusion.

Product Details:



1. Model: Carbon steel wire rope sleeve

2. Material: Low-carbon alloy steel

3. Shape: Oval shape

4. Usage: Wire rope fitting

5. Size: 8mm-32mm

6. Packaging: Gunny bag or carton then on steel pallet

7. Special specification and marks can be made according to order quantity

Specification:



Code Weight L B C D
lbs/100pcs mm mm mm mm
SH-08 17 31.75 27.43 20.57 4.83
SH-10 13 31.75 28.45 20.57 3.56
SH-11 331 41.4 35.81 25.91 4.83
SH-13 27 41.4 36.58 25.91 4.06
SH-14 63 57.15 43.69 31.24 5.84
SH-16 54 57.15 46.74 32.51 5.08
SH-19 90 66.8 54.86 38.61 5.84
SH-22 126 73.15 63.5 44.45 6.86
SH-26 187 77.72 72.14 50.8 8.38
SH-32 384 103.12 88.9 63.5 9.65



8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve 08mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve 1





Packing & Delivery



8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve 2

8mm To 32mm Rope Rigging Hardware Electric Galvanized Carbon Steel Wire Rope Sleeve 3
