Stainless Steel Double Eye And Eye Swivel High Polished European Type

Certification
China HUIXING INDUSTRY (QINGDAO) CO.,LTD. certification
China HUIXING INDUSTRY (QINGDAO) CO.,LTD. certification
I'm Online Chat Now

Stainless Steel Double Eye And Eye Swivel High Polished European Type

Stainless Steel Double Eye And Eye Swivel High Polished European Type
Stainless Steel Double Eye And Eye Swivel High Polished European Type
Stainless Steel Double Eye And Eye Swivel High Polished European Type Stainless Steel Double Eye And Eye Swivel High Polished European Type Stainless Steel Double Eye And Eye Swivel High Polished European Type

Large Image :  Stainless Steel Double Eye And Eye Swivel High Polished European Type

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: European Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

Stainless Steel Double Eye And Eye Swivel High Polished European Type

Description
Product Name: High Polished Stainless Steel European Type Eye And Eye Swivel Material: Stainless Steel, Carbon Steel
Surface: Hot Dip Galvanized, Zinc Plated, High Polished Size: 5/32”-1”
Packing: Cartong + Pallet WLL: 113kg-3250kg
High Light:

113kg eye and eye swivel

,

3250kg eye and eye swivel

,

double eye swivel European Type

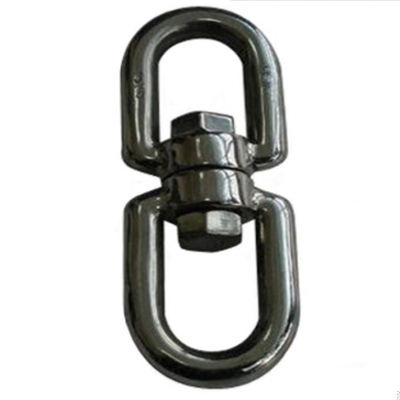

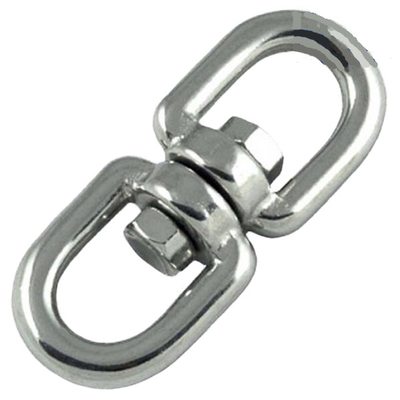

High Polished Stainless Steel European Type Eye and Eye Swivel

European type swivel with eye and eye is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers.

Product details:

1. Item: European type swivel eye and eye

2. Type: European type

3. Material: stainless steel, carbon steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated, high polished

6. WLL:113kg-3250kg

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 5/32”-1”

10.Special specifications and marks can be made according to customers requirement

Specification:



Item A(mm) B(mm) L(mm) WLL(kg)
HS-01 4 11 50 112.5
HS-02 5 13 59 162.5
HS-03 6 14.7 66 300
HS-04 8 20.5 94 475
HS-05 9 22 102 750
HS-06 10 24 118 875
HS-07 13 32 152 1250
HS-08 16 40 188 2125
HS-09 19 41 229 2500
HS-10 22 47 251 2875
HS-11 25 62 291 3250



Stainless Steel Double Eye And Eye Swivel High Polished European Type 0

Stainless Steel Double Eye And Eye Swivel High Polished European Type 1Stainless Steel Double Eye And Eye Swivel High Polished European Type 2



Packing & Delivery



Stainless Steel Double Eye And Eye Swivel High Polished European Type 3

Stainless Steel Double Eye And Eye Swivel High Polished European Type 4
