Product Details:
|
Product Name: | High Polished Stainless Steel European Type Eye And Jaw Swivel | Material: | Stainless Steel, Carbon Steel |
---|---|---|---|
Surface: | Hot Dip Galvanized, Zinc Plated, High Polished | Size: | 6mm-19mm |
Packing: | Cartong + Pallet | WLL: | 300kg-2500kg |
High Light: | Rope Rigging Hardware 6mm,Rope Rigging Hardware 19mm,European Type jaw and eye swivel |

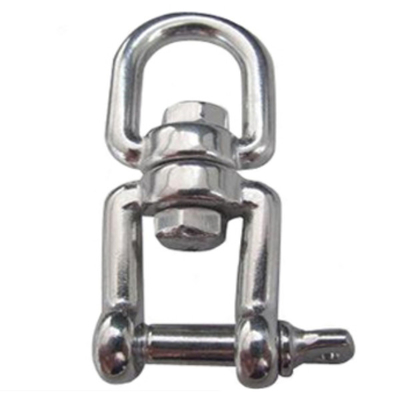

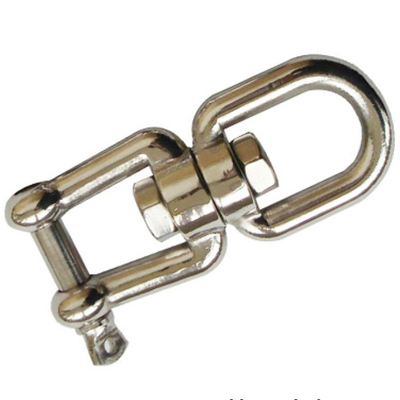

European type swivel with eye and jaw is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. The most outstanding advantage of it is the solid and safety structure. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.
Product details:
1. Item: European type swivel eye and jaw
2. Type: European type
3. Material: stainless steel, carbon steel
4. Technology: drop forged
5. Surface: hot dip galvanized, zinc plated, high polished
6. WLL:300kg-2500kg
7. Breaking load: 4 times of working load
8. Usage: lifting, rigging
9. Size: 6mm-19mm
10.Special specifications and marks can be made according to customers requirement
Specification:
Size | A | B | L | WLL |
mm | mm | mm | mm | kg |
6 | 6 | 12 | 66 | 300 |
8 | 8 | 16 | 94 | 475 |
10 | 10 | 20 | 118 | 875 |
13 | 13 | 26 | 152 | 1250 |
16 | 16 | 32 | 188 | 2125 |
19 | 19 | 38 | 229 | 2500 |
