Product Details:
|
| Product Name: | High Polished Stainless Steel Chain Swivel G-401 | Material: | Stainless Steel, Carbon Steel |
|---|---|---|---|
| Surface: | Hot Dip Galvanized, Zinc Plated, High Polished | Size: | 1/4”-1 1/2” |
| Packing: | Cartong + Pallet | WLL: | 850lbs-45200lbs |
| High Light: | stainless steel chain swivel 850lbs,stainless steel chain swivel 45200lbs,chain swivel fishing G401 |
||

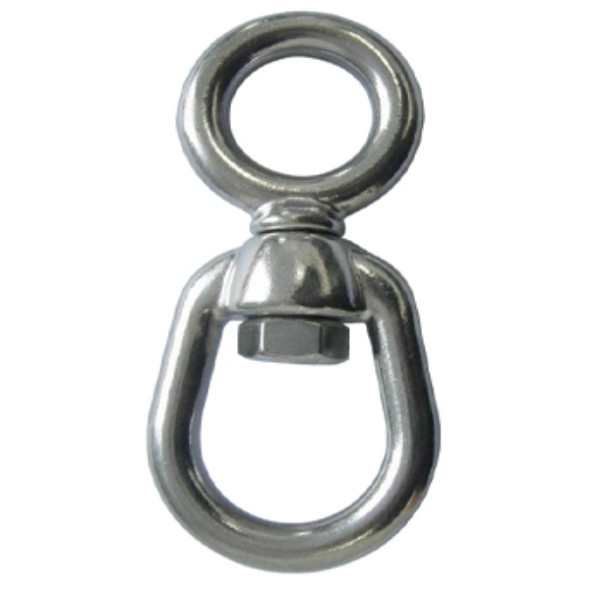

Stainless steel chain swivel G401 is made by high polished stainless steeel with advanced international production process. The working load limited of it is from 850 pounds to 45200 pounds. And its size is from 1/4 inch to1 1/2 inch. It has the advantages of small volume, light weight and high strength. And Special specification and marks can be made according to customers requirement.
Product details:
1. Item: stainless steel chain swivel G401
2. Material: stainless steel
3. Technology: drop forged
4. Surface: high polished, hot dip galvanized
5. WLL: 850lbs-45200lbs
6. Breaking load: 4 times of working load
7. Usage: lifting, rigging
8. Size: 1/4”-1 1/2”
9.Special specifications and marks can be made according to customers requirement
Specification:
| Size | B | C | D | G | T | W.L.L. |
| in | in | in | in | in | in | lbs |
| 1/4' | 0.69 | 0.75 | 0.62 | 0.25 | 3 | 850 |
| 5/16' | 0.81 | 1 | 0.72 | 0.31 | 3.59 | 1250 |
| 3/8' | 0.94 | 1.25 | 1 | 0.38 | 4.44 | 2500 |
| 1/2' | 1.31 | 1.5 | 1.25 | 0.5 | 5.69 | 3600 |
| 5/8' | 1.56 | 1.75 | 1.5 | 0.62 | 6.89 | 5200 |
| 3/4' | 1.75 | 2 | 1.75 | 0.75 | 7.84 | 7200 |
| 7/8' | 2.06 | 2.25 | 2 | 0.87 | 9.02 | 10000 |
| 1' | 2.31 | 2.5 | 2.25 | 1 | 10.24 | 12500 |
| 1 1/8' | 2.33 | 2.75 | 2.5 | 1.13 | 11.25 | 16500 |
| 1 1/4' | 2.66 | 3.13 | 2.75 | 1.25 | 12.15 | 18000 |
| 1 1/2' | 4.4 | 4 | 3 | 1.5 | 16.38 |
45200 |
