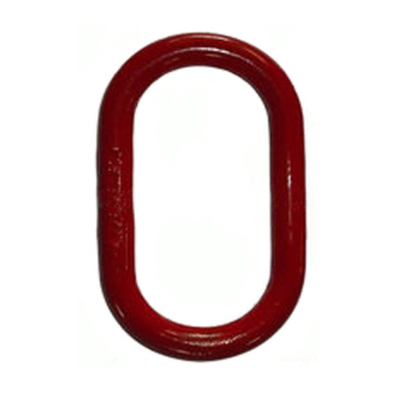

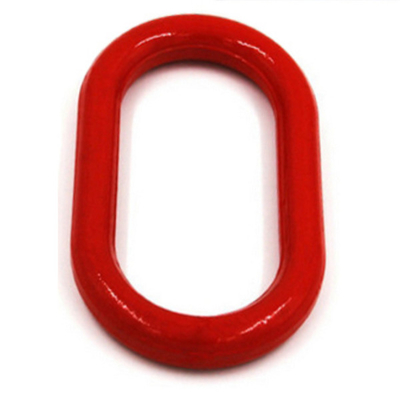

13mm US Type Forged Chain Link Forged Crosby A342 Master Link

13mm US Type Forged Chain Link Forged Crosby A342 Master Link
13mm US Type Forged Chain Link Forged Crosby A342 Master Link
13mm US Type Forged Chain Link Forged Crosby A342 Master Link 13mm US Type Forged Chain Link Forged Crosby A342 Master Link 13mm US Type Forged Chain Link Forged Crosby A342 Master Link

Large Image :  13mm US Type Forged Chain Link Forged Crosby A342 Master Link

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: A342
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

13mm US Type Forged Chain Link Forged Crosby A342 Master Link

Description
Product Name: Color Painted US Type A342 Forged Master Link Material: Forged Alloy Steel
Surface: Hot Dip Galvanized, Powder Plastified Size: 13mm-101.6mm
Packing: Cartong + Pallet WLL: 3.2T-169.2T
High Light:

13mm forged chain link

,

US Type forged chain link

,

Forged crosby a342 master link

Color Painted US Type A342 Forged Master Link

US type A342 forged master link is made of high quality alloy steel, and the surface of it is powder plastified and hot dip galvanized. Every procedure are controlled strictly to make sure the quality of hooks before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security

products.

Product Details:

1. Item: US type A342 forged master link

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, powder plastified

6. WLL: 3.2T-169.2T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size:13mm-101.6mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T) Weight(kg) B.L(T) A(mm) B(mm) D(mm)
3.2 0.36 16 127 63.5 13
4.1 0.7 20.5 152 76 16
5.6 0.93 28 140 70 19
6.8 1.5 34 160 90 22
11 2.1 55 178 89 25
16.4 4.24 82 222 111 32
24.6 7.17 123 267 135 38
38.5 11.56 192.5 305 152 45
46.5 17.2 232.5 355 178 51
64.9 24.5 324.5 406 203 57
72.6 30.9 363 406 203 63.5
98.4 39.5 492 406 241 70
103.4 50.34 517 457 228 76
119 65.68 595 508 254 82.5
126.5 90.24 632.5 508 305 89
152.4 89.27 762 508 254 95
169.2 103.43 846 508 254 101.6



13mm US Type Forged Chain Link Forged Crosby A342 Master Link 0

13mm US Type Forged Chain Link Forged Crosby A342 Master Link 113mm US Type Forged Chain Link Forged Crosby A342 Master Link 2



Packing & Delivery



13mm US Type Forged Chain Link Forged Crosby A342 Master Link 3

13mm US Type Forged Chain Link Forged Crosby A342 Master Link 4
