Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Color Painted Forged Master Link Pear Master Link 10mm To 38mm
Color Painted Forged Master Link Pear Master Link 10mm To 38mm
Color Painted Forged Master Link Pear Master Link 10mm To 38mm Color Painted Forged Master Link Pear Master Link 10mm To 38mm Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Large Image :  Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Pear Shape Link
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Color Painted Forged Master Link Pear Master Link 10mm To 38mm

Description
Product Name: Color Painted Forged Pear Shape Link Material: Forged Alloy Steel, Carbon Steel
Surface: Hot Dip Galvanized, Color Painted Size: 10mm-38mm
Packing: Cartong + Pallet WLL: Alloy Steel: 3600lbs-54300lbs/ Carbon Steel: 1800lbs-25000lbs
High Light:

Forged Master Link 10mm

,

Color Painted Forged Master Link

,

pear master link 38mm

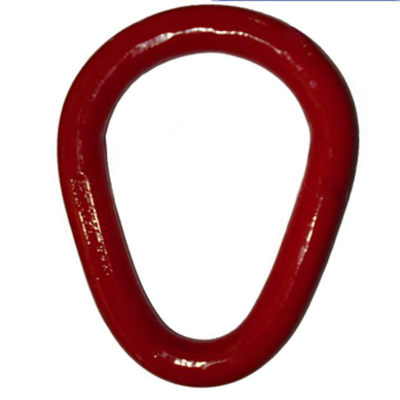

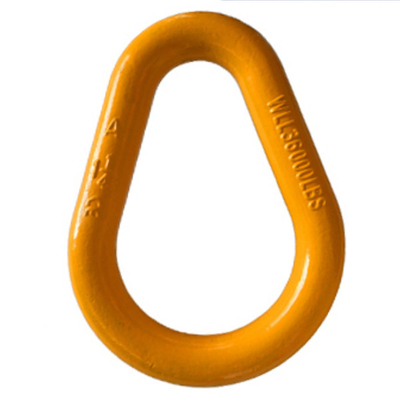

Color Painted Forged Pear Shape Link

The surface of the forged pear shape link is smooth, and without any defects of cracks, flaws and shape edges to damage wire rope. It is made of high quality carbon steel or forged alloy steel with heat treatment. It has the advantages of small volume, light weight and high strength. And the break load of it is 4 times of working load limited.

Product Details:

1. Item: Forged pear shape link

2. Grade: G80

3. Material: Forged alloy steel, carbon steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: Alloy steel: 3600lbs-54300lbs/ Carbon steel: 1800lbs-25000lbs

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 10mm-38mm

10. Special specifications and marks can be made according to customers requirement

Specification:

Item WLL(T) d(mm) R(mm) r(mm) L(mm)
HS-01 1 18 44 22 132
HS-02 2 20 44 22 132
HS-03 3 22 44 22 132
HS-05 5 26 52 26 156
HS-08 8 32 66 32 192
HS-10 10 36 72 36 216
HS-12 12 40 80 40 240
HS-16 16 45 90 45 270
HS-20 20 50 100 50 300
HS-25 25 53 112 56 336
HS-32 32 58 128 64 384
HS-40 40 63 140 70 420
HS-50 50 70 156 78 468



Color Painted Forged Master Link Pear Master Link 10mm To 38mm 0

Color Painted Forged Master Link Pear Master Link 10mm To 38mm 1Color Painted Forged Master Link Pear Master Link 10mm To 38mm 2



Packing & Delivery



Color Painted Forged Master Link Pear Master Link 10mm To 38mm 3

Color Painted Forged Master Link Pear Master Link 10mm To 38mm 4
