Product Details:
|
| Product Name: | Drop Forged Color Painted A347 Welded Master Link Assembly | Material: | Alloy Steel |
|---|---|---|---|
| Surface: | Hot Dip Galvanized, Color Painted | Size: | 14mm-51mm |
| Packing: | Cartong + Pallet | WLL: | 2.4T-40T |
| High Light: | A347 welded master link,welded master link ISO,crosby master link assembly 51mm |
||

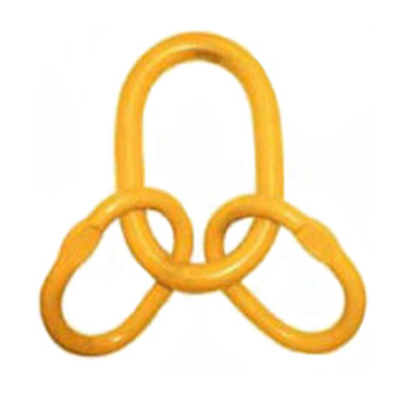

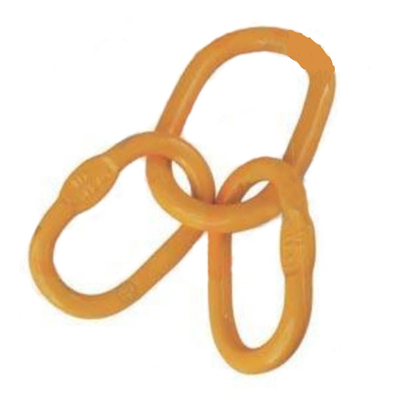

A347 welded master link assembly are consisted by a main ring with two or more subrings. It is mainly used for assembly lifting riggings. The subring connect with connecting link and chain, and all of them assemble into composite rigging to lift heavy objects and equipments. It can be widely used in machinery, metallurgy, electric power, railway, port, wharf, chemical industry and so on.
Product Details:
1. Item: A347 welded master link assembly
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 2.4T-40T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 14mm-51mm
10. Special specifications and marks can be made according to customers requirement
Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | D(mm) | a(mm) | b(mm) | d(mm) |
| 2.4 | 0.82 | 9.6 | 100 | 60 | 14 | 85 | 40 | 12 |
| 3.2 | 1.6 | 12.8 | 160 | 90 | 18 | 100 | 60 | 14 |
| 3.2 | 1.61 | 12.8 | 160 | 90 | 18 | 100 | 60 | 14 |
| 5 | 1.95 | 20 | 160 | 90 | 20 | 100 | 60 | 14 |
| 8 | 3.16 | 32 | 180 | 100 | 22 | 150 | 70 | 18 |
| 12 | 6.75 | 48 | 270 | 140 | 28 | 160 | 90 | 22 |
| 17.4 | 9.31 | 69.6 | 270 | 140 | 32 | 180 | 100 | 25 |
| 21 | 18.4 | 84 | 300 | 160 | 40 | 270 | 140 | 31 |
| 30 | 26.4 | 120 | 340 | 180 | 45 | 285 | 155 | 36 |
| 40 | 42.91 | 160 | 350 | 190 | 51 | 340 | 180 |
45 |
