Product Details:
|
| Product Name: | Drop Forged Color Painted A346 Welded Master Link Assembly | Material: | Alloy Steel |
|---|---|---|---|
| Surface: | Hot Dip Galvanized, Color Painted | Size: | 18mm-72mm |
| Packing: | Cartong + Pallet | WLL: | 2.36T-63T |
| High Light: | Drop Forged stainless steel master link,stainless steel master link A346,A346 Welded Master Link Assembly |
||

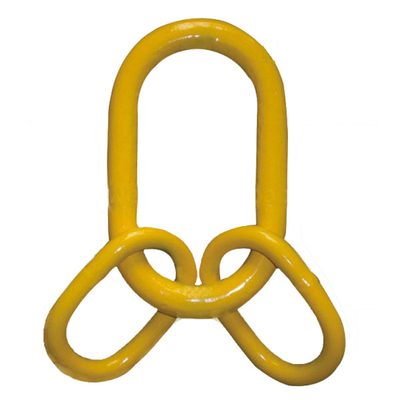

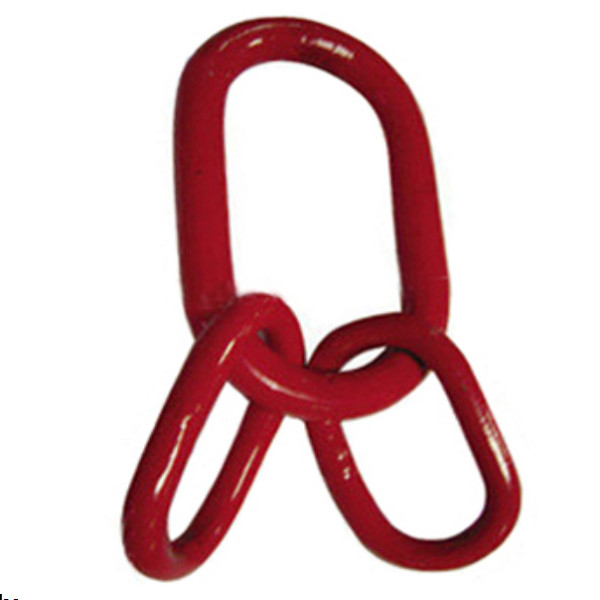

A346 welded master link assembly is made by high quality alloy steel. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document. All the procedures from raw material purchase to delivery will be strictly examed.
Product Details:
1. Item: A346 welded master link assembly
2. Grade: G80
3. Type: European type
4. Material: Forged alloy steel
5. Technology: Drop forged
6. Surface: Hot dip galvanized, Color painted
7. WLL: 2.36T-63T
8. Braking load is 4 times of working load limited
9. Usage: Lifting accessories
10. Size: 18mm-72mm
11. Special specifications and marks can be made according to customers requirement
Specification:
| WLL(T) | Weight(kg) | B.L(T) | A(mm) | B(mm) | D(mm) | a(mm) | b(mm) | d(mm) |
| 2.36 | 1.18 | 9.44 | 135 | 75 | 18 | 54 | 25 | 13 |
| 3.15 | 1.24 | 12.6 | 135 | 75 | 18 | 60 | 38 | 13 |
| 4.25 | 2.2 | 17 | 160 | 90 | 22 | 70 | 34 | 16 |
| 6.7 | 3.4 | 36.8 | 180 | 100 | 26 | 85 | 40 | 18 |
| 11.2 | 6.1 | 44.8 | 200 | 110 | 32 | 115 | 50 | 22 |
| 17 | 9.98 | 68 | 260 | 140 | 36 | 140 | 65 | 26 |
| 21.2 | 18.9 | 84.8 | 340 | 180 | 45 | 180 | 100 | 32 |
| 26.5 | 22.6 | 1.6 | 350 | 190 | 50 | 180 | 100 | 32 |
| 31.5 | 25.2 | 126 | 350 | 190 | 50 | 180 | 100 | 36 |
| 45 | 36.26 | 180 | 400 | 200 | 56 | 200 | 110 | 40 |
| 50 | 47.11 | 200 | 430 | 220 | 63 | 200 | 110 | 45 |
| 63 | 66.46 | 252 | 460 | 250 | 72 | 200 | 110 | 50 |
