Drop Forged Master Link G80 A337 Alloy Steel Connecting Link

Drop Forged Master Link G80 A337 Alloy Steel Connecting Link
Drop Forged Master Link G80 A337 Alloy Steel Connecting Link
Drop Forged Master Link G80 A337 Alloy Steel Connecting Link Drop Forged Master Link G80 A337 Alloy Steel Connecting Link Drop Forged Master Link G80 A337 Alloy Steel Connecting Link

Large Image :  Drop Forged Master Link G80 A337 Alloy Steel Connecting Link

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

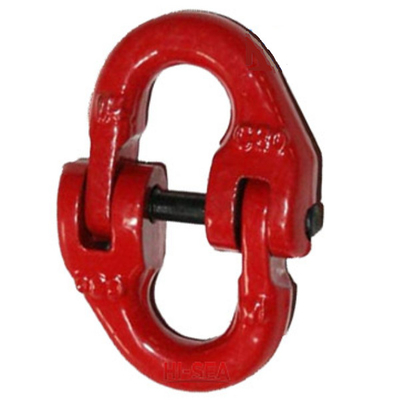

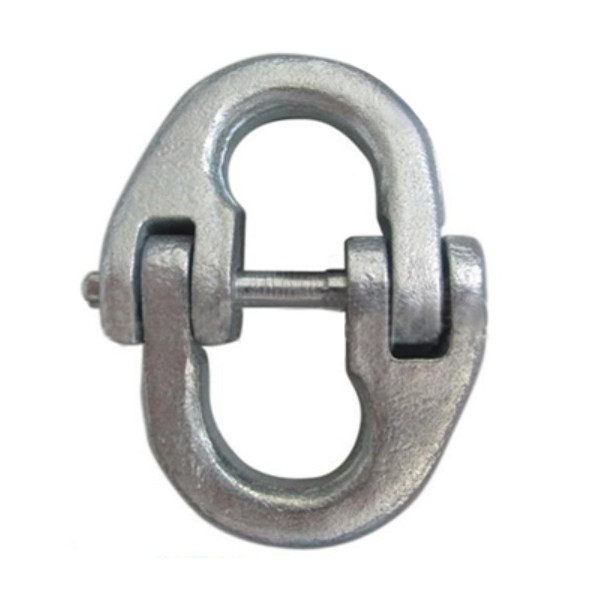

Drop Forged Master Link G80 A337 Alloy Steel Connecting Link

Description
Product Name: Drop Forged G80 A337 Alloy Steel Connecting Link Material: Alloy Steel
Surface: Hot Dip Galvanized, Color Painted Size: 0.35mm-1.5mm
Packing: Cartong + Pallet WLL: 3500lbs-72300lbs
High Light:

1.5mm Forged Master Link G80

,

Forged Master Link A337

,

A337 alloy steel connecting link

Drop forged G80 A337 Alloy Steel Connecting Link

A337 alloy steel connecting link are made form quenched and tempered alloy steel for high tensile strength and wear resistance. They can be used together with chain, master link, hooks and other lifting components as well as steel wire ropes. The working load limited of it is from 3500 pounds to 723000 pounds. And special specifications and marks can be made according to customers requirement

Product Details:

1. Item: A337 alloy steel connecting link

2. Grade: G80

3. Type: US type

4. Material: Forged alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, Color painted

7. WLL: 3500lbs-72300lbs

8. Braking load is 4 times of working load limited

9. Usage: Lifting accessories

10. Size: 0.35mm-1.5mm

11. Special specifications and marks can be made according to customers requirement

Specification:

Size(mm) WLL(lbs) Weight(lbs) A(mm) K(mm) W(mm)
7 3500 0.28 0.68 1.85 0.35
8 4500 0.55 0.77 2.2 0.38
10 7100 0.84 0.94 2.6 0.52
13 12000 1.6 1.27 3.4 0.64
16 18100 2.86 1.48 4.13 0.75
20 28300 5 1.75 5.08 0.96
22 34200 7.5 2.18 5.47 1.06
25 47700 11.03 2.5 6.1 1.22
32 72300 20.39 2.76 7.99

1.5





Drop Forged Master Link G80 A337 Alloy Steel Connecting Link 0

Drop Forged Master Link G80 A337 Alloy Steel Connecting Link 1Drop Forged Master Link G80 A337 Alloy Steel Connecting Link 2



Packing & Delivery



Drop Forged Master Link G80 A337 Alloy Steel Connecting Link 3

Drop Forged Master Link G80 A337 Alloy Steel Connecting Link 4
