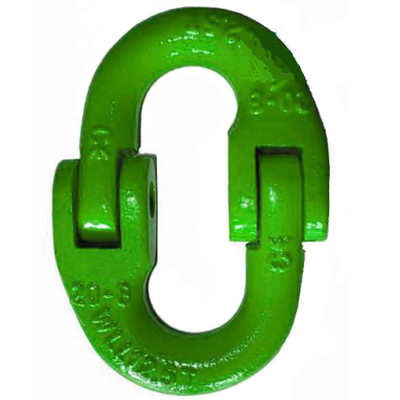

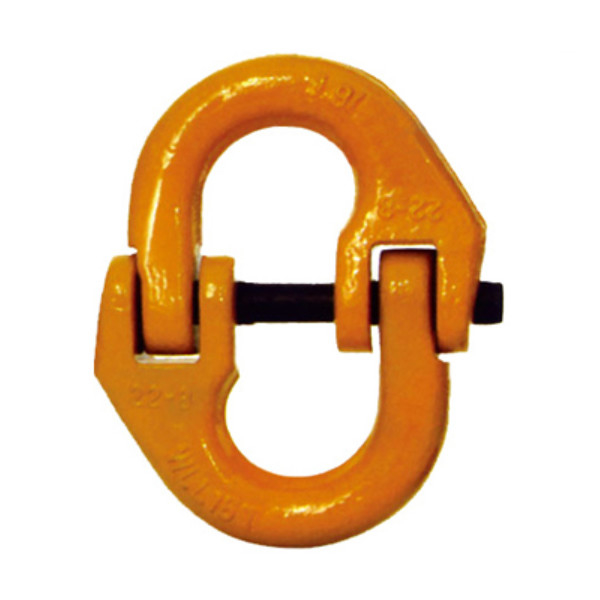

6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified

6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified
6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified
6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified

Large Image :  6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: Connecting Link
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified

Description
Product Name: Power Plastified Drop Forged Alloy Steel Connecting Link Material: Drop Forged Alloy Steel
Surface: Hot Dip Galvanized, Color Painted Size: 6mm-30/32mm
Packing: Cartong + Pallet WLL: 1T-32.2T
High Light:

6mm lifting master link

,

30/32mm master link lifting ring

,

Alloy Steel Connecting Link 32.2T

Power Plastified Drop Forged Alloy Steel Connecting Link

Drop forged alloy steel connecting link has the advantages of small volume, light weight and high strength. And the surface of them are smooth to avoid snagging. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: G80 high quality connectint link

2. Grade: G80

3. Material: Alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1T-32.2T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 6mm-30/32mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T) Weight(kg) B.L(T) A(mm) B(mm) L(mm) K(mm) H(mm)
1.12 0.08 4.48 15 7.5 58 42 7
1.5 0.145 6 16 8.5 71.8 54.8 8.5
2 0.146 8 18 9.5 79.5 60.5 8.5
2 0.16 8 19.5 9.5 79.5 60.5 8.5
3.15 0.3 12.6 25 12 90.5 68 11.5
5.3 0.65 21.2 29 15 117 87 15
8 1.15 32 34.5 19.8 148 108.4 19.8
10 1.84 40 38 21 154 112 21
12.5 2.1 50 41 24 169.5 121.5 24
15 2.87 60 48 26 193.5 141.5 26
21.2 4.5 84.8 57.5 31 220 158 30
31.5 8.21 126 67 38 281 205 37



6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 0

6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 16mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 2





Packing & Delivery



6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 3

6mm - 30/32mm Lifting Master Link Alloy Steel Connecting Link Power Plastified 4
