Product Details:
|
| Product Name: | Ratchet Type Load Binder Without Hook | Material: | Carbon Steel, Melleable Iron |
|---|---|---|---|
| Surface: | Power Coating, Galvanized | Weight: | 7.8lbs-8.5lbs |
| Packing: | Cartong + Pallet | WLL: | 5400lbs-13000lbs |
| High Light: | 5400lbs Load Binder,13000lbs Load Binder Without Hook,ratchet chain binder Power Coating |
||

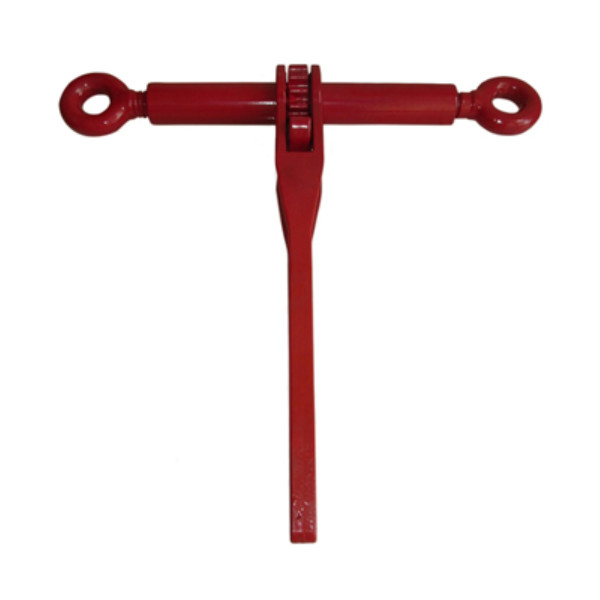

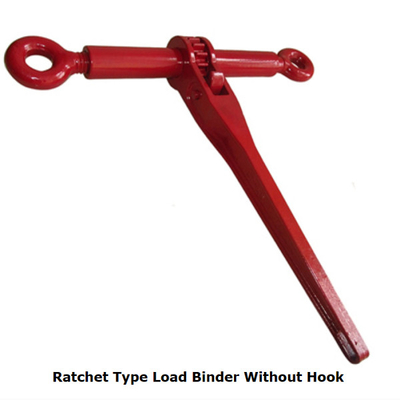

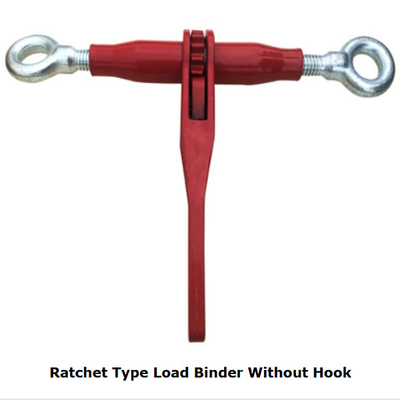

Ratchet type load binder can be widely used in offshore oil engineering, lifting tugboat and other extreme environment. It is die forged from 45# steel and melleable iron with powder coating on the surface. The safety work load limited of it is from 5.4T to 13T. And special specification and marks can be made according to customer’s requirements.
Product Details:
1. Model: Ratchet type load binder without hook
2. Material: Carbon steel, melleable iron
3. Standard: US type
4. Technology: Forged, casting
5. Surface: Power coating, Galvanized
6. SWL: 5400lbs-13000lbs
7. Weight: 7.8lbs-8.5lbs
8. Special specification and marks can be made according to customer’s requirements.
Specification:
| Chain Size | WLL | B.L. | Weight | A | B | C | E | E1 | F |
| in | lbs | lbs | lbs | mm | mm | mm | mm | mm | mm |
| 5/16-3/8 | 5400 | 19000 | 7.8 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 0.79 |
| 3/8-1/2 | 9200 | 33000 | 7.8 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 1.02 |
| 1/2-5/8 | 13000 | 46000 | 8.5 | 13.92 | 1.3 | 2.6 | 14.17 | 22.17 |
1.02 |
