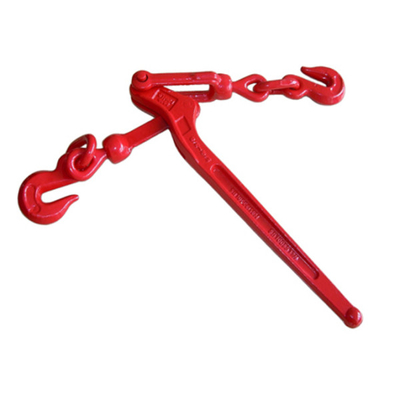

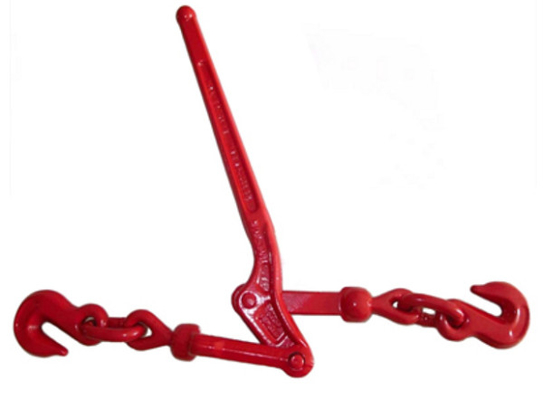

Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron

Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron
Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron
Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron

Large Image :  Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: US Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron

Description
Product Name: US Type Standard Lever Type Load Binder Material: Carbon Steel, Melleable Iron
Surface: Power Coating, Galvanized Weight: 3.52lbs-19.7lbs
Packing: Cartong + Pallet WLL: 2200lbs-11000lbs
High Light:

Load Binder 2200lbs

,

Load Binder 11000lbs

,

lever chain binder melleable iron

Power Coating US Type Standard Lever Type Load Binder

US type standard lever type load binder is die forged from high quality 45# low carbon steel or melleable iron. Compared with other tension methods, the work efficiency of it is higher. And we can provide it with sufficient supply, fast delivery time and complete specification.

Product Details:

1. Model: US type standard lever type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-11000lbs

7. Weight: 3.52lbs-19.7lbs

8. Special specification and marks can be made according to order quantity

Specification:

Chain Size WLL B.L. Weight A B C D E H G
in lbs lbs lbs mm mm mm mm mm mm mm
1/4-5/16 2200 7800 3.52 18.5 17.3 14.2 11.42 8.27 8.07 0.35
5/16-3/8 5400 19000 8.37 15.43 23.2 19.5 15.55 11.22 11.22 0.51
3/8-1/2 9200 28000 12.11 17.24 26.4 22.1 17.64 12.99 12.2 0.59
1/2-5/8 11000 44000 19.7 21 30.1 25.9 20.87 14.37 14.37 0.74



Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron 0

Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron 1Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron 2



Packing & Delivery



Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron 3

Lever Load Binder US Type Standard 2200lbs - 11000lbs Melleable Iron 4
