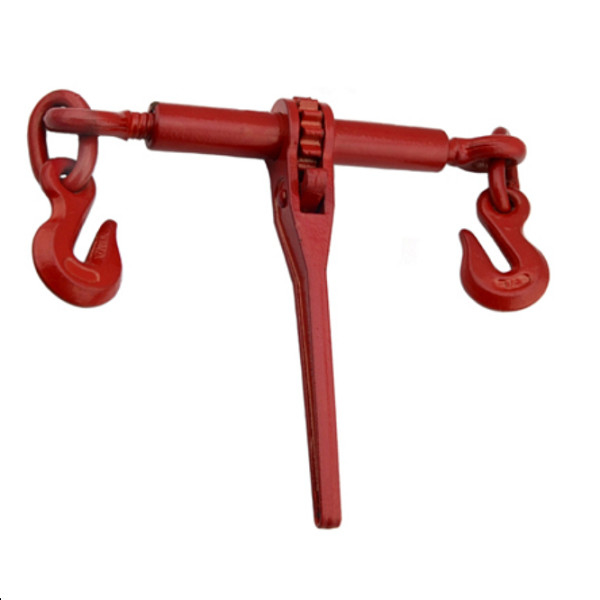

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability
Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability
Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability

Large Image :  Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: US Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability

Description
Product Name: US Type Standard Ratchet Type Load Binder Material: Carbon Steel, Melleable Iron
Surface: Power Coating, Galvanized Weight: 3.52lbs-14.38lbs
Packing: Cartong + Pallet WLL: 2200lbs-13000lbs
High Light:

melleable iron Load Binder

,

Load Binder 3.52lbs

,

speed chain binders 14.38lbs

Power Coating US Type Standard Ratchet Type Load Binder

Load binder plays an important role in fixing and tensioning goods during transportation, loading and storage. After being fastened, it can avoid the object falling off and damaging. Beside that, it has advantages of safety, reliability, high working efficiency and easy to operate.

Product Details:

1. Model: US type standard ratchet type load binder

2. Material: Carbon steel, melleable iron

3. Standard: US type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. SWL: 2200lbs-13000lbs

7. Weight: 3.52lbs-14.38lbs

8. Special specification and marks can be made according to order quantity

Specification:



Chain Size WLL B.L. Weight A B D E E1 F G
in lbs lbs lbs mm mm mm mm mm mm mm
1/4-5/16 2200 7800 3.52 7.16 0.89 1.77 16.22 21.26 17.79 0.35
5/16-3/8 5400 19000 10.5 13.9 1.3 2.6 22.64 30.64 25.24 0.51
3/8-1/2 9200 33000 12.9 13.9 1.3 2.6 24.13 32.13 27.04 0.59
1/2-5/8 13000 46000 14.38 13.9 1.3 2.6 26.45 34.45 30.07 0.74



Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability 0

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability 1Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability 2



Packing & Delivery



Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability 3

Melleable Iron Ratchet Load Binder Speed Chain Binders Safety Reliability 4
