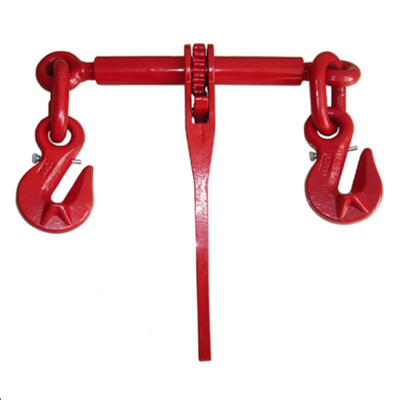

3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating

3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating
3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating
3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating

Large Image :  3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: European Type
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating

Description
Product Name: European Type Ratchet Load Binder Material: Carbon Steel, Melleable Iron
Surface: Power Coating, Galvanized Weight: 3.52kg-19kg
Packing: Cartong + Pallet WLL: 2200lbs-24000lbs
High Light:

3.52kg Load Binder

,

19kg ratchet load binder

,

self load binder Power Coating 24000lbs

Power Coating European Type Ratchet Load Binder

European type ratchet load binder is safe and reliable. It can protect objects from falling off and damaging. Compared with other tension methods, it is easier to be operated, and the work efficiency of it is higher.

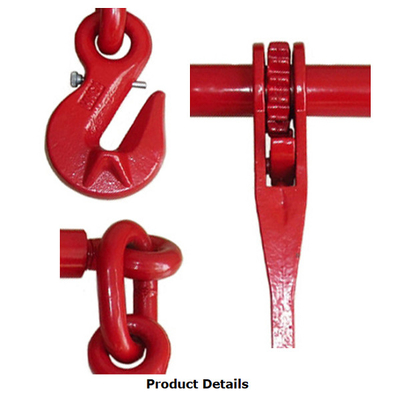

Product Details:

1. Model: European type ratchet load binder

2. Material: Carbon steel, melleable iron

3. Standard: European type

4. Technology: Forged, casting

5. Surface: Power coating, Galvanized

6. WLL: 2200lbs-24000lbs

7. Weight: 3.52kg-19kg

8. Packaging: Carton then on steel pallet

9. Special specification and marks can be made according to customer’s requirements.

Specification:

Chain Size WLL Breaking Load Weight A B C E E1 F F1 G
mm lbs lbs lbs mm mm mm mm mm mm mm mm
6 2200 7800 3.52 7.16 0.89 1.77 17.4 22.04 19.2 23.84 0.35
8 5400 19000 10.5 13.92 1.3 2.6 23.78 31.78 26.14 34.14 0.47
10 9200 33000 12.2 13.92 1.3 2.6 23.82 31.82 26.93 34.93 0.63
13 13000 46000 14.38 13.92 1.3 2.6 25.9 33.9 29.57 34.57 0.72
16 24000 72000 19 13.92 1.3 2.6 26.5 34.8 31.6 39.9 0.92



3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 0

3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 13.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 2



Packing & Delivery



3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 3

3.52kg - 19kg Self Ratchet Load Binder European Type Power Coating 4
