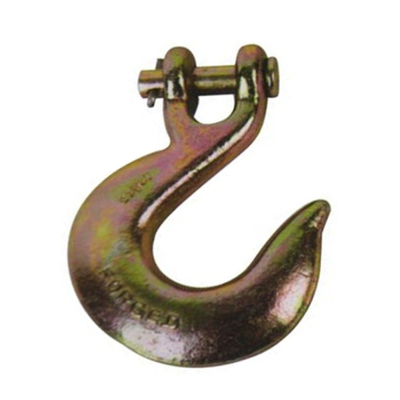

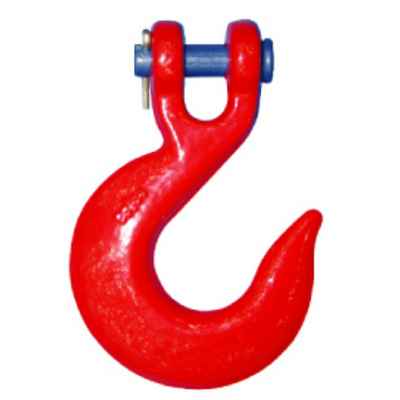

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook
2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook
2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook

Large Image :  2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook

Description
Product Name: G80 US Type Alloy Steel Clevis Slip Hook Material: Alloy Steel
Surface: Hot Dip Galvanized, Zinc Plated Or Self Color Size: 1/4”-3/4”
Packing: Cartong + Pallet WLL: 2750lbs-19250lbs
High Light:

2750lbs G80 Hook

,

19250lbs G80 Hook

,

Alloy Steel clevis slip hook

G80 US type alloy steel clevis slip hook

US type alloy steel clevis slip hook is one of the most common sling in hoist machinery. Its work load is from 2750lbs to 19250lbs. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.

Product details:

1. Item: US type alloy steel clevis slip hook

2. Type: US type

3. Grade: 80

4. Material: alloy steel

6.Technology: drop forged

7. Surface: hot dip galvanized, zinc plated or self color

8. WLL: 2750lbs-19250lbs

9. Breaking load: 4 times of working load

10. Usage: lifting, rigging

11. Size: 1/4”-3/4”

12.Special specifications and marks can be made according to customers requirement

Specification:

Chain Size WLL Dimentions(in) Weight
in lbs B E P R lbs
1/4' 2750 0.44 0.94 0.38 2.56 0.5
5/16' 4300 0.5 1.06 0.44 2.87 0.75
3/8' 5250 0.59 1.31 0.47 3.25 1.2
7/16' 7000 0.66 1.56 0.56 3.7 2.06
1/2' 9000 0.75 1.69 0.63 4 2.8
5/8' 13500 0.91 2 0.75 4.94 4.75
3/4' 19250 1.31 2.5 1 6.09 10.3

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 0

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 12750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 2



Packing & Delivery



2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 3

2750lbs To 19250lbs G80 Hook US Type Alloy Steel Clevis Slip Hook 4







Tag:

2750lbs G80 Hook,

19250lbs G80 Hook,

G80 clevis grab hook
