Product Details:
|
| Product Name: | G80 Clevis Slip Hook With Latch | Material: | High Alloy Steel |
|---|---|---|---|
| Surface: | Zinc Plated | Size: | 1/4 - 1'' |
| Packing: | Cartong + Pallet | WLL: | 2750 Lbs - 26500 Lbs |
| High Light: | ISO G80 Hook,Alloy Steel G80 Hook,clevis slip hook with latch 1/4in |
||

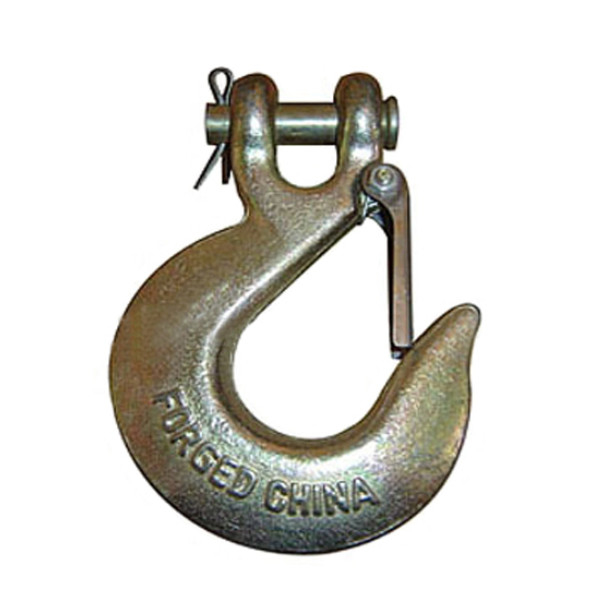

Clevis slip hook with latch are simple to assemble with chains without any intermediate coupling-links. Its pulling force is very large, so it could be widely used in project hoisting mechinery, loading and unloading of port and railway and electric power equipment.Besides that, every procedure are controlled strictly to make sure the quality of hooks before delivery.
Product details:
1. Item: Clevis slip hook with latch
2. Type: US type
3. Grade: 80
4. Material: high alloy steel
5. Technology: drop forged
6. Surface: hot dip galvanized, zinc plated or self color
7. WLL: 2750lbs-26500lbs
8. Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 1/4”-1”
11. Special specifications and marks can be made according to customers requirement
Specification:
| Chain Size | W.L.L | Dimension(in) | Weight | ||||
| in | lbs | B | E | P | R | T | lbs |
| 1/4' | 2750 | 0.44 | 0.79 | 0.38 | 2.56 | 0.79 | 0.52 |
| 5/16' | 4300 | 0.5 | 0.93 | 0.44 | 2.87 | 0.79 | 0.77 |
| 3/8' | 5250 | 0.59 | 1.14 | 0.47 | 3.25 | 1.02 | 1.23 |
| 7/16' | 7000 | 0.66 | 1.18 | 0.56 | 3.7 | 1.06 | 2.1 |
| 1/2' | 9000 | 0.75 | 1.42 | 0.63 | 4 | 1.38 | 2.85 |
| 5/8' | 13500 | 0.91 | 1.65 | 0.75 | 4.94 | 1.69 | 5.18 |
| 3/4' | 19250 | 0.31 | 1.81 | 1 | 6.09 | 1.81 | 10.45 |
| 1' | 26500 | 0.38 | 1.98 | 1.14 | 7.4 | 2.5 | 13.65 |
