Product Details:
|
Product Name: | DIN6899 Type B Wire Rope Thimble | Material: | Carbon Steel |
---|---|---|---|
Surface: | Galvanized | Size: | M2.5 - M40 |
Weight: | 0.005 - 3.2 Kg/pc | Packing: | Cartong + Pallet |
High Light: | DIN6899 steel wire thimble,Type B steel wire thimble,thimble on wire rope M40 |

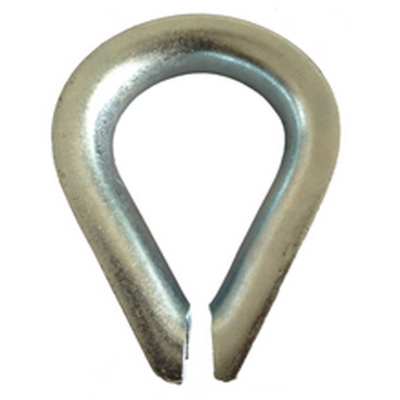

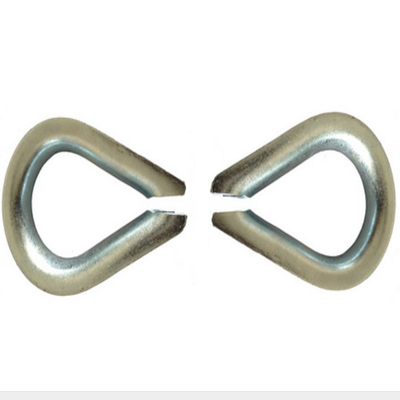

Elec.Galv. DIN6899 B Type Thimbles:
Our company has produced this model for several years and we also co-operate with other excellent factories, so all sizes are available and the price is very competitive. What is more, our professional sales team will provide you with the best service. Welcome to contact with us.
Details:
1. Model: Elec.Galv. DIN6899 B Type Thimbles
2. Material: Malleable Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: as customers' requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size(mm) | N.W. kg/100pcs | Size(mm) | N.W. kg/100pcs |
2.5×3 | 0.6 | 26×28 | 68 |
3.5×4 | 0.7 | 28×30 | 90 |
4×5 | 1 | 30×32 | 110 |
5×6 | 1.6 | 32×34 | 136 |
6×7 | 2.4 | 34×36 | 140 |
8×10 | 3.5 | 36×38 | 160 |
10×12 | 6.3 | 38×40 | 236 |
12×13 | 7.5 | 40×42 | 273 |
14×16 | 15 | 42×45 | 378 |
16×18 | 20 | 48×50 | 500 |
18×20 | 27 | 52×56 | 650 |
20×22 | 30 | 56×59 | 700 |
22×24 | 47 | 64 | 1180 |
24×26 | 54 |
Packing & Delivery
