Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26

Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26
Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26
Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26 Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26

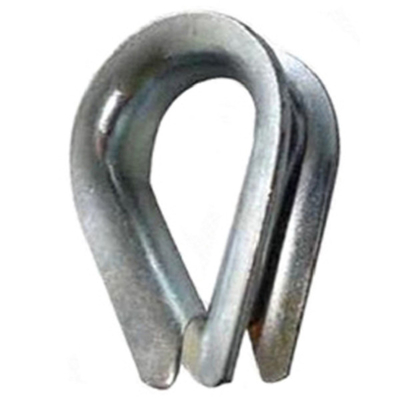

Large Image :  Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: DIN6899A
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month
Contact Now

Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26

Description
Product Name: DIN6899 Type A Wire Rope Thimble Material: Carbon Steel
Surface: Galvanized Size: M2.5 - M26
Weight: 0.14 - 52 Kg/pc Packing: Cartong + Pallet
High Light:

Type A Wire Rope Thimble

,

Wire Rope Thimble DIN6899 M2.5

,

wire thimble types M26

Galvanized Carbon Steel DIN6899 Type A Wire Rope Thimble

DIN6899 TypeA Wire Rope Thimble:

Our company has produced this model for many years and we also co-operate with other excellent factories, so the price is very competitive. If you want to get more specific information, please feel free to contact with us.

Details:

1. Model: DIN6899 TypeA Wire Rope Thimble
2. Material: Carbon Steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized
5. Size: From 3mm to 24mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size(mm) A B C D E F G H Weight/pcs(kg)
3 28 21.5 16 10 5 3 1 2 4
3.5 30 23.5 17 11 5.5 3.5 1 2 4.2
4 34 26.6 19 12 6 4 1 2.5 5.2
6 38 30 22 14 8 6 1 3 8.5
7 43 33 24 15 9 7 1.2 3.3 13
8 44 35 26 16 10 8 1.2 3.8 15
9 50 39 29 18 11.4 9 1.2 4.3 19
10 56 43 32 20 13 10 1.5 4.5 28
11 63 47.5 36 22 14 11 1.5 5.5 35
12 68 51.5 40 24 15 12 1.5 6.5 40
13 75 56.5 44 26 17 13 2 7 63
14 82 61 48 28 18 14 2 8 77
16 91 69.5 54 32 21 16 2.5 8.5 123
18 102 78 59 35 24 18 3 9 185
20 114 86.5 68 40 28 20 4 10 315
22 126 95 76 44 30 22 4 12 364
24 138 103.5 84 48 32 24 4 13 417



Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26 0

Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26 1



Packing & Delivery

Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26 2

Type A Wire Rope Thimble Galvanized Carbon Steel DIN6899 M2.5 To M26 3







Tag:

Wire Rope Thimble 1/8in,

Wire Rope Thimble M4,

heavy duty thimble M32
