G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in

Certification
China HUIXING INDUSTRY (QINGDAO) CO.,LTD. certification
China HUIXING INDUSTRY (QINGDAO) CO.,LTD. certification
I'm Online Chat Now

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in
G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in
G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in

Large Image :  G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in

Product Details:
Place of Origin: CHINA
Brand Name: LKY
Certification: CE, ISO
Model Number: G411
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: Negotiable
Packaging Details: Carton + Pallet
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 200 tons per month

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in

Description
Product Name: G411 Standard Wire Rope Thimble Material: Carbon Steel
Surface: Galvanized Size: 1/8 - 2-1/2''
Weight: 0.013 - 4 Kg/pc Packing: Cartong + Pallet
High Light:

G411 Wire Rope Thimble

,

Wire Rope Thimble 1/8in

,

thimble for wire CE

Galvanized Carbon Steel G411 Standard Wire Rope Thimble

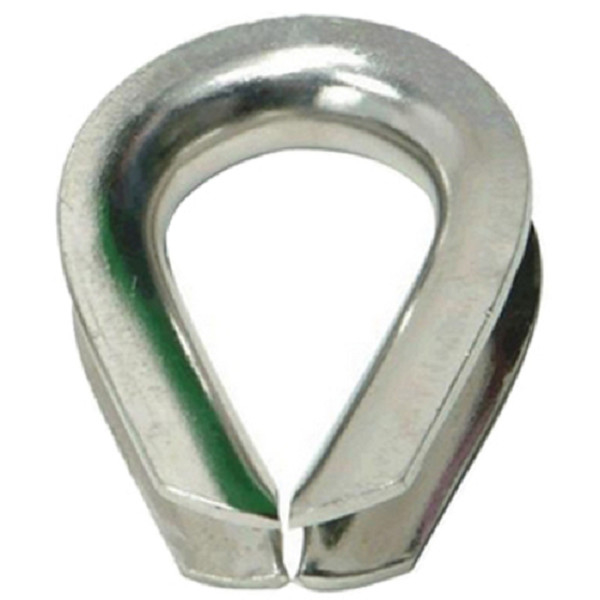

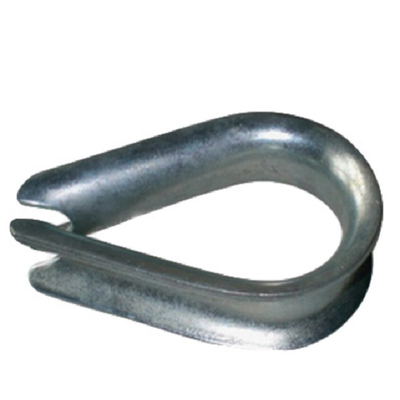

G411 Standard Wire Rope Thimble:

G411 standard wire rope thimbles are one of our company's key products. They have high cost performance. Our professional sales team will provide you with the best service. Please feel free to get in touch with us.

Details:

1. Model: G411 Standard Wire Rope Thimble
2. Material: Carbon steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Hot dip galvanized, electro galvanized
5. Size: From 1/8 inch to 11/4 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:



Seil-ø A L C
inch mm mm mm
1/8 4 33.27 17.5
3/16 5 33.27 17.5
1/4 7 33.27 17.5
5/16 8.6 38 20.57
3/8 10.4 41 23.88
1/2 13.5 47.75 28.7
5/8 16.8 57.15 35.05
3/4 19.8 63.5 41.4
7/8 23.88 88.9 47.75
1 26.92 107.95 63.5
11/8-11/4 33.27 114.3 69.85



G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in 0

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in 1G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in 2





Packing & Delivery

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in 3

G411 Standard Wire Rope Thimble For Wire Chain Fittings 1/8in 4
